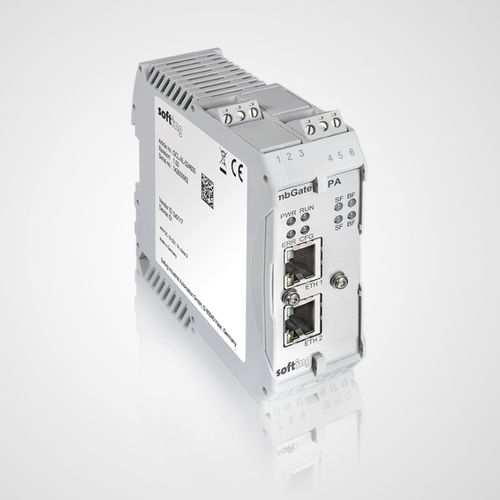

Communication gateway mbGate PA
industrialModbus TCPPROFIBUS

communication gateway
communication gateway
communication gateway
Add to favorites
Compare this product


Characteristics

Type
communication, industrial
Network
Modbus TCP, PROFIBUS
Other characteristics
DIN rail, compact, 2 port, IP20

Description

Simple connection of PROFIBUS PA Slave devices to Modbus control systems via internal I/O mapping With mbGate PA it is possible to integrate up to 4 PROFIBUS PA segments into Modbus TCP control systems. It acts as Modbus TCP Server and PROFIBUS PA Master. With our gateways the engineering costs can be reduced since it re-uses existing power conditioners in technology upgrade projects. It enables configuration, parameterization and plant asset management using standard industry tools. Key Component for Transition to State-of-the-Art Technology • Simple replacement of installed PROFIBUS DP/PA segment couplers • Re-use of existing PROFIBUS PA segments without requiring modification Direct Connectivity to PROFIBUS Segments • Acting as Modbus Server and PROFIBUS PA Master • Connects up to 4 PROFIBUS PA Segments to Modbus TCP Configuration, Parameterization and Plant Asset Management Using Standard Industry Tools • Supports major Modbus engineering tools such as Schneider Unity Pro or Siemens TIA Portal • Included CommDTM allowing use in FDT/DTM frame applications • EDD-based device parametrization using Siemens Simatic PDM MODBUS/TCP Redundancy • Supports the use of two redundant PLCs and two redundant gateways • Easily enabled via licensing • Full control of redundant operation mode via engineering and PLC
