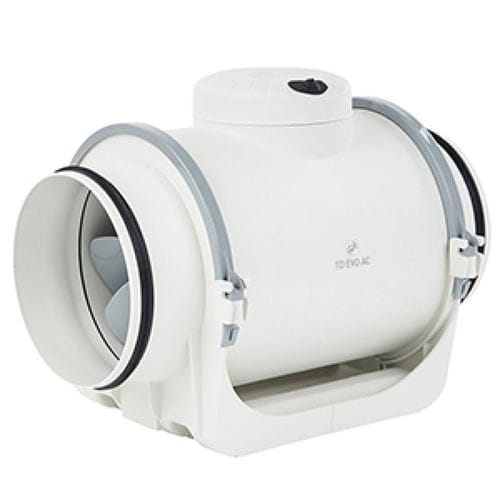

Mixed-flow fan TD EVO VAR SeriesductventilationAC
Add to favorites
Compare this product
Characteristics
- Configuration
- mixed-flow
- Type
- duct
- Function
- ventilation
- Supply voltage
- AC, 230VAC
- Material
- plastic
- Applications
- commercial, motor
- Other characteristics
- in-line, compact
- Air flow
Max.: 1,840 m³/h
(64,978.987 ft³/h)Min.: 216 m³/h
(7,627.968 ft³/h)- Rotational speed
Max.: 2,710 rpm
(17,027 rad.min-1)Min.: 2,320 rpm
(14,577 rad.min-1)- Noise level
Max.: 56 dB
Min.: 19 dB
Description
TD EVO-VAR version fitted with one-speed AC motor with integrated variable speed drive, adjustable run-on timer and analogic input 0-10V.
The maximum speed performance curve corresponds to the “HS” performance curves shown on the graphs.
Low profile compact casing manufactured in tough reinforced plastic.
Optimised design of the impeller, guide vane and outlet diffuser, to increase performance and lower the sound level.
Airtight construction with double injection sealing between the main body and the support bracket to avoid air leaks.
Rubber gaskets on the flanges to improve airtightness with the ducts.
Silent-block between the motor and the guide vane to reduce the motor’s vibrations and lower the sound level of the installation, even when speed regulated.
