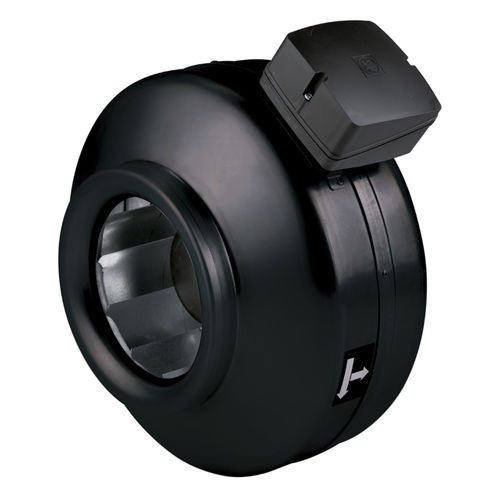

Duct fan VENT-ECOWATT Seriescentrifugalexhaustventilation
Add to favorites
Compare this product
Characteristics
- Installation
- duct
- Configuration
- centrifugal
- Function
- exhaust, ventilation
- Supply voltage
- 230VAC
- Drive mechanism
- brushless motor, EC motor
- Material
- galvanized steel
- Other characteristics
- in-line, industrial, commercial
- Air flow
Max.: 2,070 m³/h
(73,101.36 ft³/h)Min.: 300 m³/h
(10,594.4 ft³/h)- Diameter
Max.: 400 mm
(15.748 in)Min.: 100 mm
(3.937 in)- Rotational speed
Max.: 2,860 rpm
(17,970 rad.min-1)Min.: 860 rpm
(5,404 rad.min-1)- Noise level
Max.: 44 dB
Min.: 24 dB
Description
In-line centrifugal duct fans suitable for wide range of general residential, commercial and industrial exhaust or supply ventilation applications.
Circular in-line duct fans from 100 to 400 mm diameter.
Models are suitable for mounting in any orientation and operation within ambient air temperatures between -20ºC up to +40ºC. Comprehensive range of accessories to ease the installation and control the fan performances.
Fan casing manufactured from high-grade corrosion-resistant pressed galvanized steel, with black polyester paint coating. Fully airtight sealed assembly.
Direct drive centrifugal impeller. Brushless EC motor, with thermal overload protection, suitable for single phase supply 230V +/- 15%/50-60Hz.
Fan speed adjustable with the potentiometer placed in the connection box or with an external control type REB-ECOWATT.
Analogue input with terminals in the terminal box to control the fan with 0-10V input signal.
Mounting foot
Supplied with unit as standard (Models 100 to 315).
Models 355 and 400
