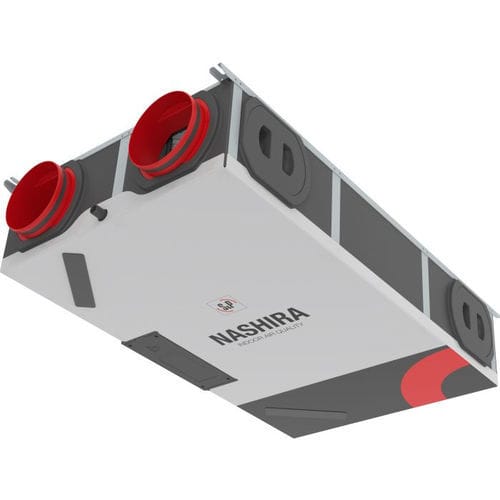

Dual-flow ventilation unit NASHIRA S series

high-efficiency

Double flow ventilation unit for singlefamily houses and apartment buildings, with high-efficiency counterflow heat exchanger (up to 94%), featuring low consumption, low-noise EC motors. It ensures a comfortable, healthy and energy-efficient indoor climate. Passivhaus certification. Through the SPCM communication board, NASHIRA ventilation unit communicates with CONNECTAIR platform, enabling internet-based control. NASHIRA ventilation unit can communicate with your home automation system via Modbus or other protocols via gateway. Its compact design and nozzle configuration ensure optimal performance and swift and flexible installation. Features • Counterflow heat exchanger with up to 94% efficiency. • Modbus and 0-10V connection. • Constant flow centrifugal fans. • Reversible and symmetrical L/R. • Built-in humidity sensors. • 90° adjustable nozzles. • Remote control via cable or RF (optional). • G4 supply/extraction filter (M5, F7, F9 and Activated Carbon filters, optional for supply). • 100% automatic or manual bypass, with specific bypass airflow adjustment. • 4 outlets in Ø 160 mm. (NASHIRA 200) or Ø 125 mm (NASHIRA 150). • False ceiling installation. • Enthalpic version. Remote control included with the product Allows adjustment of: - Speeds. - Manual or automatic. - Dirty filter alarm. - Manual bypass activation. Connectair Through the SPCM Lite M module, the unit can access Connectair, S&P’s IoT that offers a new way to enjoy ventilation.
