Air blower PCD-IL
centrifugalcabinetfor ventilation

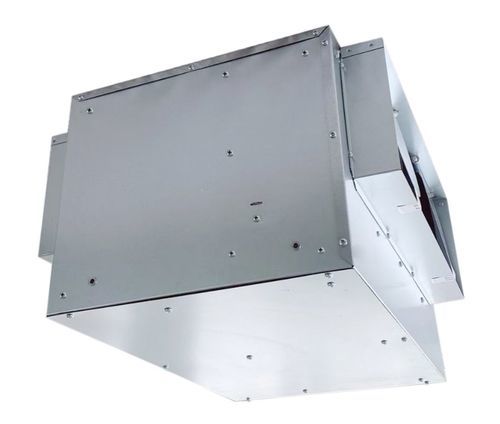

Air blower - PCD-IL - Soler & Palau - centrifugal / cabinet / for ventilation

Add to favorites

Compare this product

Characteristics

Type

air

Technology

centrifugal

Applications

for ventilation, cabinet

Other characteristics

compact, brushless DC, variable-speed, flow control

Flow

Max.: 1,866.912 m³/h
(65,929.375 ft³/h)

Min.: 169.901 m³/h
(5,999.997 ft³/h)

Description

Overview
The PCD Inline Series combines advanced EC/DC motor technology, intelligent AutoFLO™ motor control, and high-performance centrifugal blowers to provide quiet, energy-efficient ventilation for exhaust and supply air in light commercial applications. AutoFLO™ maintains the selected airflow by increasing motor RPM as system static pressure rises. Integrated speed controls and an optional filter slot for MERV 13 filters enable flexible installation and operation.

Models

PCD300IL
PCD600IL
PCD1000IL

Certifications

Key Features

High-efficiency EC/DC motor technology
AutoFLO™ automatic motor control to maintain selected airflow with increasing static pressure
Quiet continuous operation for exhaust or supply applications
Multiple airflow settings with integrated speed control
Optional two-speed mode for continuous ventilation and demand-controlled boost
Built-in filter rack for optional MERV 13 filtration
Integrated time delay and overload protection
Rugged galvanized steel cabinet
High-performance centrifugal blower
Metal backdraft damper
Factory-supplied vibration isolation kit
Compact cabinet design for above-ceiling or concealed installations

Warranty
PCD600IL, PCD1000IL: 2 years against manufacturing defects. PCD300IL: 5 years against manufacturing defects.

Documents available

Revit files for PCD300IL, PCD600IL, PCD1000IL
Installation & Operation Manuals (IOM) for PCD600IL and PCD1000IL
Submittal PDFs for PCD600IL and PCD1000IL

Technical specifications

Airflow range: 100 – 1100 CFM (series)
Motor: High-efficiency EC/DC motor
Motor control: AutoFLO™ intelligent control, integrated speed controls, optional two-speed operation
Blower: High-performance centrifugal blower
Filtration: Optional filter slot / built-in filter rack for MERV 13 filters
Cabinet: Rugged galvanized steel
Accessories: Metal backdraft damper, factory vibration isolation kit
Protections: Built-in overload protection and built-in time delay
Installation: Compact cabinet suitable for above-ceiling or concealed installations; suitable for both exhaust and supply applications
