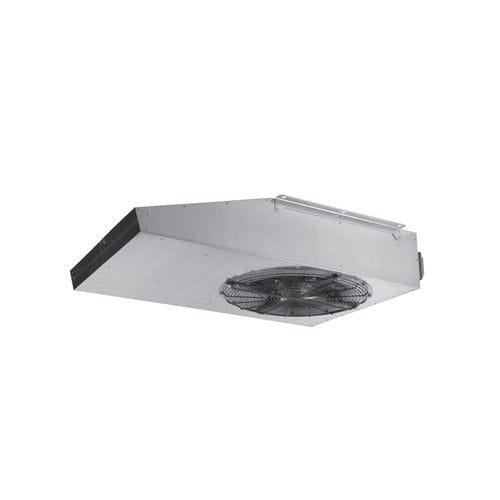

Centrifugal fan IFFT

extractionexhaustventilation

Product overview
The IFFT and IFFTe centrifugal jet fans are compact, high-capacity units designed to move large volumes of air for parking garage ventilation. They induce airflow to evacuate hazardous gases from enclosed garages and to direct air to designated ventilation points. The IFFT is fitted with an AC motor; the IFFTe uses an EC motor to improve unit efficiency.

Certifications

• Build America (BABA)
• cULus
• Ecowatt

Key features

• Thrust between 13 and 90 N
• Airflow up to 5238 CFM
• Available for 60 Hz systems; voltage options: 208V, 230V, 277V, 460V, 575V
• IFFTe available in 3PH 380–480V; IFFTe30/IFFTe50 available in 1PH 208–277V
• IFFT fitted with AC motor
• IFFTe fitted with EC motor for higher efficiency
• Galvanized sheet steel housing
• Ecowatt® available (IFFT model only)

Warranty
5-year fan housing warranty, 1-year motor warranty

Documents (available)

• Revit files (model files)
• IOM: IOM IFFT IFFTe Jet Fan (Installation & Operation Manual)
• Submittal: IFFT IFFTe Submittal

Technical specifications

• Thrust: 13 N to 90 N
• Maximum airflow: up to 5238 CFM
• Frequency: 60 Hz
• Voltage options: 208V, 230V, 277V, 460V, 575V
• IFFTe phase/voltage specifics: 3PH 380–480V; IFFTe30/IFFTe50 available in 1PH 208–277V
• Motor types: AC motor (IFFT), EC motor (IFFTe)
• Housing: galvanized sheet steel
• Efficiency technology: Ecowatt® available (IFFT model only)
