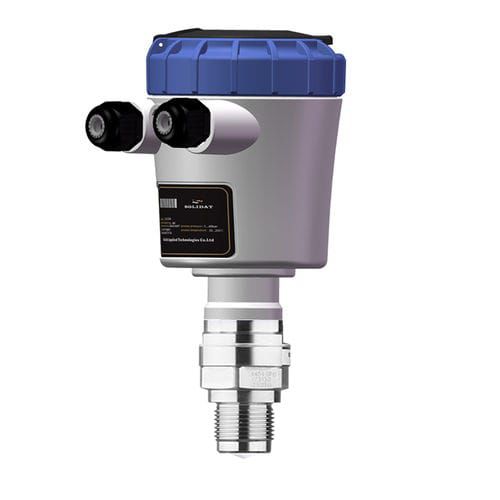

Radar level transmitter SLDL5181
for liquids4-20 mA2-wire

radar level transmitter
radar level transmitter
Add to favorites
Compare this product


Characteristics

Technology
radar
Medium
for liquids
Interface
4-20 mA, 2-wire, HART, RS-485, Modbus, PROFIBUS
Applications
for storage tanks
Level range

100 m
(328'01" )

Process pressure

Min.: -1 bar
(-14.5 psi)

Max.: 20 bar
(290.08 psi)

Process temperature

Min.: -40 °C
(-40 °F)

Max.: 200 °C
(392 °F)

Description

Using FM continuous wave (FMCW) technology, transmitting signals for linear FM in the work area, by comparing the frequency difference between two transmitted waves △f to obtain the distance value. SLDL5180: 78GHz~80GHz SLDL5190: 120GHz~128GHz Product Feature • - SLDL5180 Emission angle can be 1°, SLDL5190 Emission angle is 0.7°, can be installed by long lead-out tube, can be installed on the ball valve. • - The precision of SLDL5180 series is up to 1mm, the precision of SLDL5190 series is up to 0.5mm. • - SoltaFMScan patented processing technology, fast processing of ECHO signals to fast track material level, single measurement only takes 5ms. • - Strong penetration, especially suitable for using in high steam and high dust applications. • - Easy debugging and saving time, no need to fill or empty the container. • - The setup is simple, and the measurement can be achieved at least by setting two parameters. • - One-click imaginary echo learning, even with multiple interfering echoes, can be accurately measured. • - Multi-language support (including Chinese), echo, false echo visual display, easy to analyze and debug by maintenance personnel. • - Measurements are not affected by changes in the medium, nor is it affected by process conditions such as temperature, pressure or dust. • - Support Hart,Modbus, Profibus PA, Foundation Fieldbus、GPRS/CDMA remote, Bluetooth, etc.
