Lifting hook

fixedpipeconcrete

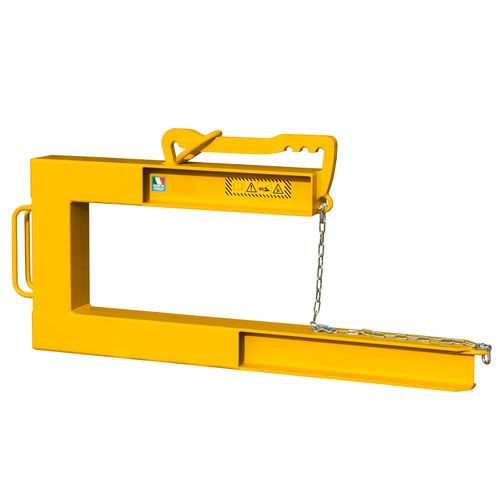

C-shaped hook for lifting and horizontal handling of heavy concrete pipes, round or box-shaped, quickly and safely. There are several models available, differing in load capacity and maximum pipe length: • Load capacity 500 kg. Max. length 1000 mm. Weight 27 kg. Dimensions: 117 x 49 x h 8 cm; • Load capacity 1000 kg. Max. length 1000 mm. Weight 27 kg. Dimensions: 117 x 49 x h 8 cm; • Load capacity 2000 kg. Max. length 1000 mm; Weight 52 kg. Dimensions: 109 x 63 x h 11 cm; • Load capacity 2000 kg. Max. length 2200 mm. Weight 164 kg. Dimensions: 214 x 71 x h 16 cm; • Load capacity 3000 kg. Max. length 2200 mm. Weight 196 kg. Dimensions: 217 x 75 x h 18 cm; • Load capacity 5000 kg. Max. length 2200 mm. Weight 273 kg. Dimensions: 217 x 103 x h 20 cm; • Load capacity 6500 kg. Max. length 2200 mm. Weight 318 kg. Dimensions: 211 x 107 x h 22 cm; • Load capacity 6500 kg. Max. length 2500 mm. Weight 380 kg. Dimensions: 262 x 107 x h 22 cm; • Load capacity 8000 kg. Max. length 2200 mm. Weight 400 kg. Dimensions: 224 x 120 x h 24 cm. C-hook for lifting and handling concrete pipes When it comes to lifting and horizontal transport of round or box-shaped concrete pipes, safety and efficiency are paramount. That is why the ‘C’ lifting hook for concrete pipes is the ideal solution for moving these materials quickly and safely. Thanks to its ergonomic design and ability to lift and handle concrete pipes from a safe distance, this hook then allows you to increase efficiency and minimise working time, while ensuring the safety of the entire handling process.
