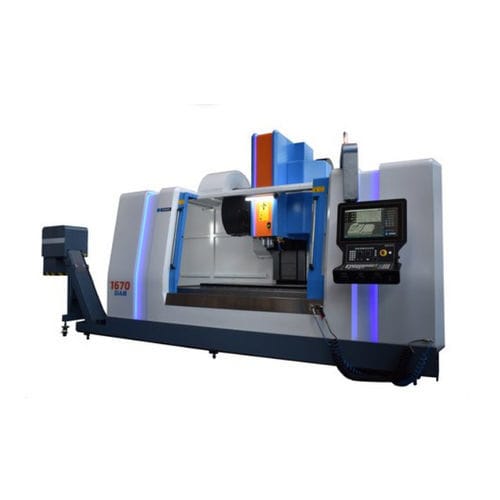

3-axis CNC milling machine DIAM 16704-axisvertical2-spindle
Add to favorites
Compare this product
Characteristics
- Number of axes
- 3-axis, 4-axis
- Spindle orientation
- vertical
- Number of spindles
- 2-spindle
- Spindle mount
- BT 40, BT 50
- Number of tool stations
- 24 tools, 40 tools, 30 tools, 20 tools, 32 outils
- X travel
1,600 mm
(63 in)- Y travel
700 mm
(28 in)- Z travel
650 mm
(26 in)- Rotational speed
10,000 rpm
(62,832 rad.min-1)- Power
11 kW, 15.5 kW
(14.96 hp, 21.07 hp)- Table load capacity
1,600 kg
(3,527 lb)- Tool weight (max)
7 kg
(15.4 lb)- Weight
12,000 kg
(26,455.47 lb)- Overall length
4,350 mm
(171.3 in)- Overall width
2,400 mm
(94.5 in)- Overall height
3,230 mm
(127.2 in)
Description
Cooled spindle, drived by belt
4 bars coolant fluid
tool cooling through spindle or from flexi-jet nozzles
Air gun and water gun
chip conveyor, belt type
Full protection including sliding front door and safety lock.
4th axis preparation
interior lighting
OPTIONS:
12000 rpm spindle
30 or 40 stations tool store with doble arm gripper
part probe
tool probe
Precision scales on 3 linear axes
20 bars cooling through spindle
Motorized 4th axis with Ø120 or 170, 200, 250, 320mm plate
smoke vacuum
Oil separator device
DELIVERABLE:
isolation transformer
toolholders
Fagor avec conversationel SOMAB PL+S VF
15" colour flat touch screen
full QWERTY alphanumerical keyboard and mouse
remove electronic hand wheel
USB connections and RJ45 for ETHERNET
Retrieving DXF files
SIEMENS 828 D with SHOPMILL conversational
10.4" TFT flat color screen
Full QWERTY alphanumeric keyboard
An electronic handwheel
USB connections on front panel
Connection to ETHERNET network with RJ 45
