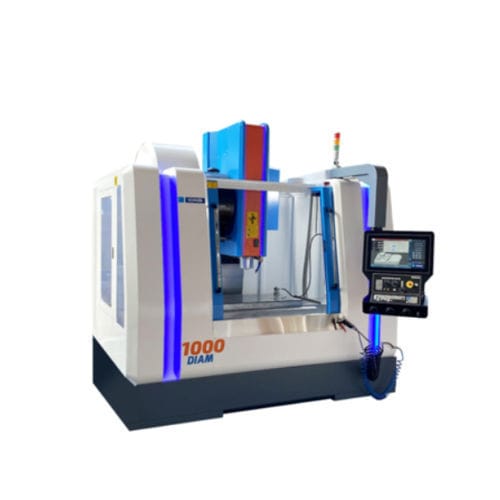

3-axis CNC milling center DIAM 10605-axis4-axisvertical
Add to favorites
Compare this product
Characteristics
- Number of axes
- 3-axis, 5-axis, 4-axis
- Spindle orientation
- vertical
- Spindle mount
- BT 40, BT 50
- Number of tool stations
- 24 tools, 20 tools, 30 tools, 32 tools, 40 tools
- X travel
1,000 mm
(39.37 in)- Y travel
600 mm
(23.62 in)- Z travel
560 mm
(22.05 in)- Rotational speed
6,000 rpm, 8,000 rpm, 10,000 rpm
(37,699 rad.min-1, 50,265 rad.min-1, 62,832 rad.min-1)- Power
11 kW, 15 kW
(14.96 hp, 20.39 hp)- Table load capacity
1,000 kg
(2,205 lb)- Tool weight (max)
7 kg
(15.4 lb)- Weight
6,800 kg
(14,991.43 lb)- Overall length
2,900 mm
(114.2 in)- Overall width
2,270 mm
(89.4 in)- Overall height
2,900 mm
(114.2 in)
Description
Cooled spindle, drived by belt
4 bars coolant fluid
tool cooling through spindle or from flexi-jet nozzles
Air gun and water gun
chip conveyor, belt type
Full protection including sliding front door and safety lock.
4th axis preparation
interior lighting
OPTIONS:
part probe
tool probe
Precision scales on 3 linear axes
20 bars cooling through spindle
Motorized 4th axis with Ø120 or 170, 200, 250mm plate
smoke vacuum
Oil separator device
DELIVERABLE:
isolation transformer
toolholders
Fagor avec conversationel SOMAB PL+S VF
15" colour flat touch screen
full QWERTY alphanumerical keyboard and mouse
remove electronic hand wheel
USB connections and RJ45 for ETHERNET
Retrieving DXF files
SIEMENS 828 D with SHOPMILL conversational
10.4" TFT flat color screen
Full QWERTY alphanumeric keyboard
An electronic handwheel
USB connections on front panel
Connection to ETHERNET network with RJ 45
Catalogs
DIAM range
4 Pages
