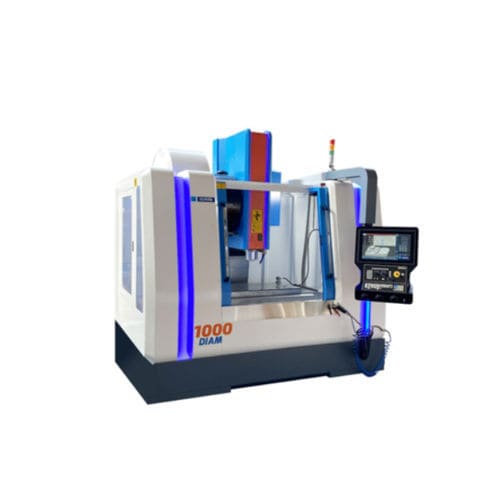

3-axis CNC milling machine DIAM 1060L5-axis4-axisvertical
Add to favorites
Compare this product
Characteristics
- Number of axes
- 3-axis, 5-axis, 4-axis
- Spindle orientation
- vertical
- Spindle mount
- BT 40
- Number of tool stations
- 24 tools, 40 tools, 20 tools, 32 outils, 30 tools
- X travel
1,000 mm
(39 in)- Y travel
600 mm
(24 in)- Z travel
560 mm
(22 in)- Rotational speed
10,000 rpm
(62,832 rad.min-1)- Power
11 kW, 15.5 kW
(14.96 hp, 21.07 hp)- Table load capacity
800 kg
(1,764 lb)- Weight
6,800 kg
(14,991.43 lb)- Overall length
2,900 mm
(114.2 in)- Overall width
2,270 mm
(89.4 in)- Overall height
2,900 mm
(114.2 in)
