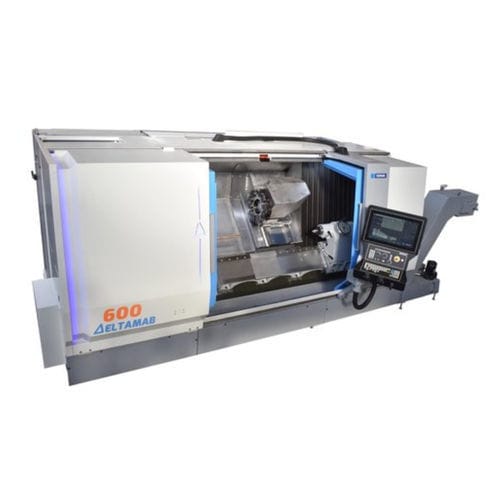

Configurable 45° slant bed lathe,
Bed in reconstituted granite on concrete monobloc base
Manual, pneumatic or hydraulic version (chuck and tailstock)
Automatic rear turret
Manual or numeric tailstock motion
Cartridge spindle with super precision ball bearings, lubricated for life.
Grinded ballscrews and double nut
Options: live tools, Y axis
2 front doors for workpiece and tools access
Sliding and swiveling console
CNC: FAGOR, SIEMENS, NUM
EQUIPMENT
Automatic rear turret VDI 40, 12 stations
Linear measuring scale on X axis
Cartridge spindle with super Precision ball bearings, lubricated for life.
Chuck with 3 concentric jaws
Tailstock MK5
Grinded ballscrews and double nut
Chip conveyor
3.3 bar coolant system, 50 Liters per minute
Sliding front doors and security lock for full protection
Automatic volumetric greasing
interior lighting
Sliding and swiveling operator console, with 1 or 2 hanwheels
Spindle power display (percentage of available power)
OPTIONS:
LIVE TOOLS AND C AXIS
Y AXIS STROKE 140mm (±70mm from spindle axis),
Turret plate with VDI50 or BMT 65
Electro-spindle
manual, pneumatic or hydraulic version (chuck and tailstock)
quick change Jaw chuck
clamping plier chuck
Dual chuck pressure
Automation of 2 front doors
2 speeds gear box, controled by M function
Work-piece collector
Bar pulling system
Fix steady rest with 3 rollers (manual adjustment) for
Ø30mm to 210mm, this steady rest can cross the turret
Ø30mm to 360mm
Ø70mm to 400mm
Following steady rest, 2 rollers, for Ø20 to 70mm
Self centering steady rest, SLU type, sizes SLU3.1 to SLU5
Steady rest automated motion
by hooking the saddle
by ball screw
Tailstock automated motion
by hooking the saddle
