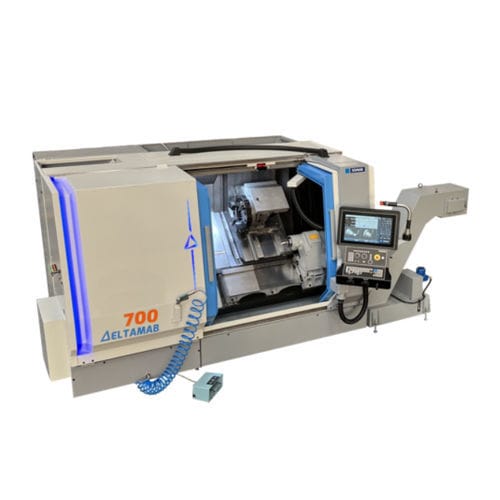

CNC lathe DELTAMAB 700

horizontal3-axisinclined bed

Bed in reconstituted granite on concrete monobloc base Manual, pneumatic or hydraulic version (chuck and tailstock) Automatic rear turret Manual or numeric tailstock motion Cartridge spindle with super precision ball bearings, lubricated for life. Grinded ballscrews and double nut Options: live tools, Y axis 2 front doors for workpiece and tools access Sliding and swiveling console CNC: FAGOR, SIEMENS, NUM EQUIPMENT Automatic rear turret VDI 50, 12 stations Linear measuring scale on X axis Cartridge spindle with super Precision ball bearings, lubricated for life. Chuck with 3 concentric jaws Tailstock MK5 Grinded ballscrews and double nut Chip conveyor 3.3 bar coolant system, 50 Liters per minute Sliding front doors and security lock for full protection Automatic volumetric greasing interior lighting Sliding and swiveling operator console, with 1 or 2 hanwheels Spindle power display (percentage of available power) OPTIONS: LIVE TOOLS AND C AXIS Y AXIS STROKE 140mm (±70mm from spindle axis), Turret plate with BMT 65 Electro-spindle (without gearbox) manual, pneumatic or hydraulic version (chuck and tailstock) quick change Jaw chuck clamping plier chuck Dual chuck pressure Automation of 2 front doors Work-piece collector Bar pulling system Fix steady rest with 3 rollers (manual adjustment) for Ø30mm to 210mm, this steady rest can cross the turret Ø30mm to 360mm Ø70mm to 400mm Following steady rest, 2 rollers, for Ø20 to 70mm Self centering steady rest, SLU type, sizes SLU3.1 to SLU5 Steady rest automated motion by hooking the saddle by ball screw Tailstock automated motion by hooking the saddle by ball screw medium or high pressure spray Bar feeder
