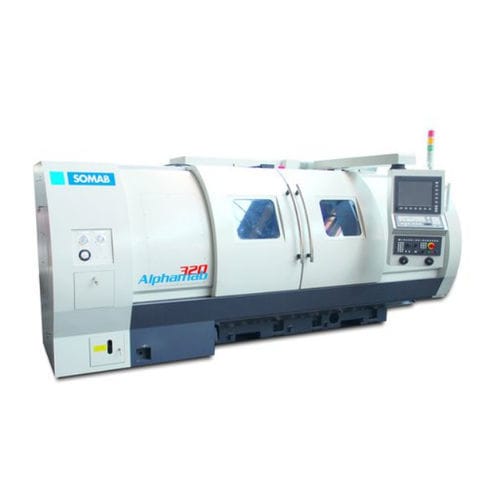

CNC turning machine ALPHAMAB 320Y

4-axisinclined bedA2-8

EQUIPMENT Ø254mm chuck with concentric jaws, delivered with: 1 set of 3 hardened jaws 1 set of 3 ground jaws Tailstock MK4 Automatic rear turret VDI 40, 12 stations Rotating tools and C axis Y axis Sliding and swiveling operator console Chip conveyor 3 bar coolant system Sliding front door and security lock for full protection Automatic volumetric greasing interior lighting ventilated electrical cabinet Status light OPTIONS: Fix steady rest with 3 rollers for Ø50mm to 250mm, manual adjustment Fix steady rest with 3 rollers for Ø250mm to 400mm, manual adjustment Tool probe Isolation transformer FAGOR 8065 CNC with Learning SOMAB PL+S VT 15" color LCD flat touch screen QWERTY alphanumeric keyboard Two handwheels Rigid tapping (fixed tools and rotating tools) USB connections on front panel Connection to ETHERNET network with RJ 45, 3 operating modes conversationally Learning Mode Manual ISO mode 4 Gb Memory Tools Library Visualization of cutting forces - oscilloscope working with .dxf files or SIEMENS 828 D with Conversational SHOPTURN 10.4" TFT flat color screen Full QWERTY alphanumeric keyboard An electronic handwheel Rigid tapping USB connections on front panel Connection to ETHERNET network with RJ 45
