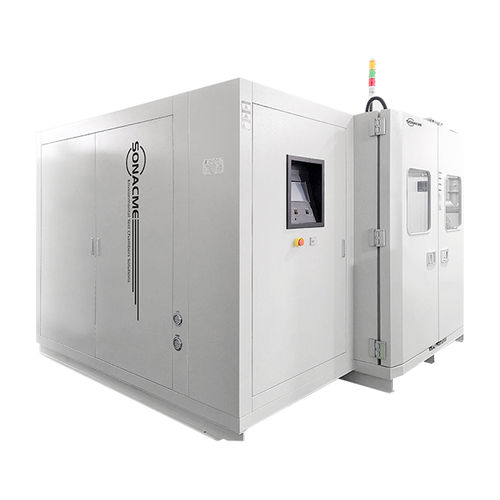

Climate chamber SWT/18/70(H)humiditytemperaturefor altitude flight simulation
Add to favorites
Compare this product
Characteristics
- Type
- climatic
- Controlled parameter
- humidity, temperature
- Test type
- for altitude flight simulation, for driving simulation, environmental stress screening, environmental, for rapid temperature cycling, burn-in
- Application domain
- for the aeronautical industry, for the pharmaceutical industry, European standards-compliant
- Product applications
- for battery, for electronic circuit boards, for sensors, for composite materials, for semiconductors, for electrical equipment, for aircraft, for automobiles, for motors, for engine, for vehicles, glass, for materials testing machines, device, for wires, for solar panels, for test benches
- Configuration
- walk-in, horizontal, vertical
- Light source
- white LED
- Protection level
- explosion-proof, with electronic lock
- Options and accessories
- with window, with cyclical temperature/humidity control, with constant temperature and humidity control
- Other characteristics
- high-capacity, energy-saving, thermal, automatic, ultra-low-temperature, low-temperature, alternating, for high temperatures, constant
- Capacity
Min.: 8 m³
(283 ft³)Max.: 40 m³
(1,413 ft³)- Temperature
Min.: -65 °C
(-85 °F)Max.: 80 °C
(176 °F)- Length
Min.: 2,170 mm
(85.43 in)Max.: 5,320 mm
(209.45 in)- Width
2,350 mm
(92.5 in)- Depth
Min.: 3,500 mm
(138 in)Max.: 6,150 mm
(242 in)
Description
Application Area
1. SONACME Walk-In Temperature Humidity Chambers Are Used For Testing Construction Materials And Electronics Fields As Well As Used In A Wide Range Of Research And Development Related To People And The Environment.
2. The Temperature And Humidity Can Be Selected According To The Performance Level Required For The Test. Many Options Can Be Used To Customize Your Test, Including Entrances, Heavy Floor Loads, Various Wall Thicknesses, Silent Packaging, Doors, Windows, User And Product Safety Options, LN2 Pressurization, Etc.
3. They Require High Performance That Can Satisfy Strict Reliability Tests For Vehicles And Other Applications.
Structural Features
1. The Inner Chamber Material Is Made Of SUS#304 Stainless Steel With 1.2mm Thickness. Full Welding Structure, Its Sealing Is Very Well And It’s Not Easy To Get Cracked.
2. The External Material Is Made Of Cold-Rolled Plate With 1.5mm Thickness, It Has Gone Through Brushing, Polishing, Painting Treatment, It's Not Easy To Get Scratched.
3. The Insulation Material Is Made Of Polyurethane Foam With Thicknessof 100mm.
4. The Door Seal Adopts Double Silicon Rubber Sealing Material.
5. The Observation Window Is 4 Layers Of Tempered Glass, The Size You Can Choose By Yourself.
6. In Addition, In Order To Prevent Frosting On The Observation Window When Running Low Temperature, We Setup A Heating Wires Inside To Get It Di-Frosting.
