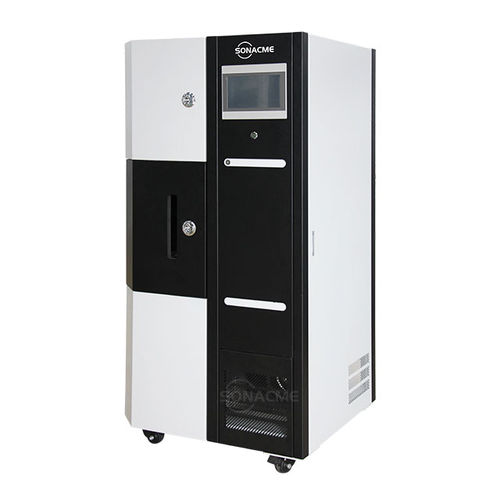

Humidity test chamber SX/2200/H
water spraysolar simulationUV light aging

Humidity test chamber - SX/2200/H - SONACME Technology - water spray / solar simulation / UV light aging
Humidity test chamber - SX/2200/H - SONACME Technology - water spray / solar simulation / UV light aging
Humidity test chamber - SX/2200/H - SONACME Technology - water spray / solar simulation / UV light aging - image - 2
Humidity test chamber - SX/2200/H - SONACME Technology - water spray / solar simulation / UV light aging - image - 3
Humidity test chamber - SX/2200/H - SONACME Technology - water spray / solar simulation / UV light aging - image - 4
Humidity test chamber - SX/2200/H - SONACME Technology - water spray / solar simulation / UV light aging - image - 5
Add to favorites
Compare this product
Go to the SONACME Technology website for more information

Characteristics

Controlled parameter
humidity
Test type
environmental, solar simulation, UV light aging, durability, for color assessment, water spray
Product applications
for battery, for electrical equipment, for solar panels, for vehicles, thermoplastic pipe, for aircraft, for test benches, for sensors, for composite materials, for asphalt, glass, device, for motors, for avionics instruments, for materials testing machines, for engine, for auto lamp, for wires, for electronic circuit boards, for semiconductors
Application domain
for quality control, European standards-compliant, international standards-compliant, for the aeronautical industry, for small parts production
Configuration
floor-standing, compact, modular
Light source
UV, sunlight, xenon, with xenon arc lamp
Protection level
anti-yellowing
Options and accessories
with irradiation system
Other characteristics
stainless steel, high-capacity, accelerated, energy-saving, constant
Temperature

Max.: 90 °C
(194 °F)

Min.: 30 °C
(86 °F)

Power

5,500 W

External length

860 mm
(33.9 in)

External height

1,770 mm
(69.69 in)

External depth

800 mm
(31.5 in)

Description

1. The rotating rack xenon arc chamber is a full featured weathering and lightfastness chamber at a breakthrough price.cost-effective, easy to use and easy to maintain xenon lamp aging test chamber. It uses an air-cooled xenon lamp imported from the United States, which can be more realistic and optimal. The full-spectrum distribution of outdoor sunlight is simulated to ensure that the laboratory test results have a very good correlation with the actual outdoor application of the material. In addition, the special drum-shaped design of the sample rack can ensure that all samples can be irradiated uniformly during the test. 2. The Xenon Lamp Weathering test chambermeets the requirements of various domestic and foreign xenon lamp testing standards and in various industries. It can accommodate 22 standard samples, not only has the spray function, but also can control the relative humidity in the working room.
