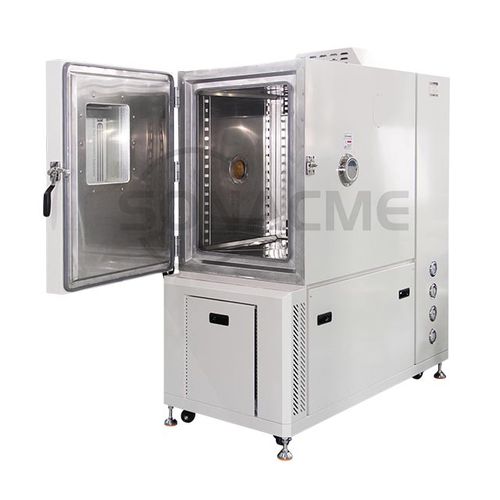

Climate chamber ST/225/70(H)
humiditytemperaturefor altitude flight simulation

Climate chamber - ST/225/70(H) - SONACME Technology - humidity / temperature / for altitude flight simulation
Climate chamber - ST/225/70(H) - SONACME Technology - humidity / temperature / for altitude flight simulation
Climate chamber - ST/225/70(H) - SONACME Technology - humidity / temperature / for altitude flight simulation - image - 2
Climate chamber - ST/225/70(H) - SONACME Technology - humidity / temperature / for altitude flight simulation - image - 3
Climate chamber - ST/225/70(H) - SONACME Technology - humidity / temperature / for altitude flight simulation - image - 4
Add to favorites
Compare this product
Go to the SONACME Technology website for more information

Characteristics

Type
climatic
Controlled parameter
temperature, humidity
Test type
environmental, for driving simulation, for color assessment, for altitude flight simulation
Product applications
for electrical equipment, for vehicles, for automobiles, for aircraft, device, for motors, for asphalt, for sensors, for materials testing machines, for epoxy polymer coatings, for engine, thermoplastic pipe, for auto lamp, for windows, for test benches, glass, for composite materials, for wires, for electronic circuit boards, for semiconductors
Application domain
for quality control, European standards-compliant, international standards-compliant, for the aeronautical industry, for the pharmaceutical industry, for small parts production
Configuration
floor-standing, compact, modular, vertical, horizontal
Light source
white LED
Protection level
with electronic lock
Options and accessories
with window, with temperature and climatic control, with constant temperature and humidity control, with cyclical temperature/humidity control, remote-controlled
Other characteristics
stainless steel, low-temperature, for high temperatures, high-capacity, accelerated, constant, alternating
Capacity

64 l, 180 l, 340 l, 600 l, 1,000 l
(16.91 gal, 47.55 gal, 89.82 gal, 158.5 gal, 264.17 gal)

Temperature

Max.: 180 °C
(356 °F)

Min.: -70 °C
(-94 °F)

Interior length

400 mm, 580 mm, 750 mm, 800 mm, 1,000 mm
(15.75 in, 22.83 in, 29.53 in, 31.5 in, 39.37 in)

Interior height

400 mm, 750 mm, 950 mm, 1,000 mm
(15.75 in, 29.53 in, 37.4 in, 39.37 in)

Interior depth

400 mm, 450 mm, 600 mm, 800 mm, 1,000 mm
(15.75 in, 17.72 in, 23.62 in, 31.5 in, 39.37 in)

External length

640 mm, 800 mm, 950 mm, 1,000 mm, 1,200 mm
(25.2 in, 31.5 in, 37.4 in, 39.4 in, 47.2 in)

External height

1,688 mm, 1,800 mm, 2,000 mm, 2,050 mm
(66.46 in, 70.87 in, 78.74 in, 80.71 in)

External depth

1,305 mm, 1,507 mm, 1,780 mm, 1,885 mm, 1,930 mm
(51.38 in, 59.33 in, 70.08 in, 74.21 in, 75.98 in)

Description

Application Area 1. Seasonal differences, different climate zones-your products must be able to withstand various temperatures during manufacturing, transportation, storage and use. The environmental test chamber of Sonacme Technology will help you to test the effects of temperature and humidity on the characteristics, functions and service life of your products under accelerated conditions. 2. The Sonacme environmental test chamber and constant temperature and humidity test chamber with a wide range of applications allow you to control the temperature and humidity in the test chamber, ranging from -70°C to +180°C (temperature) and from 20% to 98% (relative humidity). Structural Features 1. The inner chamber material is made of SUS#304 stainless steel with 1.2mm thickness. Full welding structure, its sealing is very well and it’s not easy to get cracked. 2. The external material is made of cold-rolled plate with 1.5mm thickness, it has gone through brushing, polishing, painting treatment, it's not easy to get scratched. 3. The insulation material is made of polyurethane foam with thicknessof 100mm. 4. The door seal adopts double silicon rubber sealing material. 5. The observation window is 4 layers of tempered glass, the size you can choose by yourself. 6. In addition, in order to prevent frosting on the observation window when running low temperature, we setup a heating wires inside to get it di-frosting.
