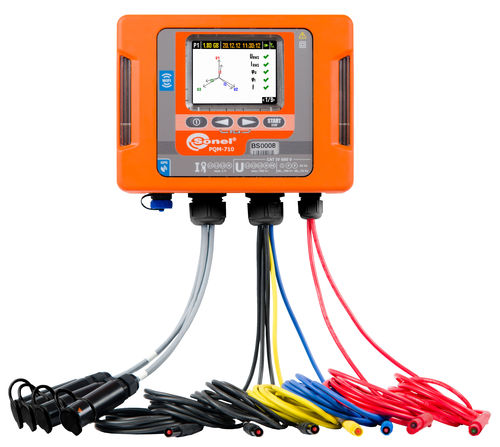

Machine monitoring analyzer PQM-710
processfor electrical networkspower plant

machine monitoring analyzer
machine monitoring analyzer
machine monitoring analyzer
Add to favorites
Compare this product


Application domain
for machine monitoring, process, for electrical networks, power plant, AC energy network, DC electrical network, for rotating-machine balancing
Measured value
power quality, harmonic
Mode of use
automatic, manual
Protection level
durable, rugged, IP65
Other characteristics
digital, continuous, real-time, high-performance, multi-parameter, with data logger, control, with Rogowski inputs, multi-channel, with GPS, data acquisition, wireless, computer-controlled, low-temperature


PQM-710 power quality analyzer is an advanced product for wide type of measurements, analysis and recording of network parameters 50/60 Hz and the power quality diagnostic according to European standard EN. PQM-710 is an innovative model with a wireless communication Wi-Fi , which allows for automatic pairing with the included tablet, with a large 10" touch screen. Tablet allows full operating of the analyzer, live data preview and the reading and analysis of data stored in the internal memory. With this solution, the PQM-710 is an unique device that combines the advantages of the analyzer with built-in display and typical portable analyzers (known as Black Boxes).With the tablet you can very fast checked the device under test. On the other hand, you can leave the analyzer module for multi-measurements as a typical logger without display. You can very fast diagnose the machine under test using the tablet. On the other hand, you can leave the analyzer module itself for many days measurement as a typical logger without display. Analyzer is addressed to a wide range of users who need to control the power quality with a mobile device, it meets the IEC 61000 standards for the Class A. Compliance with the standard includes measurement uncertainty, measurement methods and time synchronization with a reference signal. In case of using analyzer indoor with poor GPS signal additional antenna with 10 meters cable can be used. After placing antenna outside the GPS signal will be easily traced and used for internal clock synchronization.
