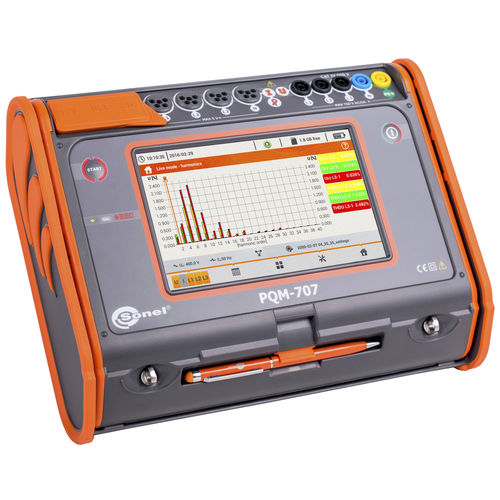

Power quality analyzer PQM-707
harmonicmonitoringprocess

power quality analyzer
power quality analyzer
Add to favorites
Compare this product


Characteristics

Measured value
power quality, harmonic
Application domain
monitoring, process, for electrical networks, power plant, AC energy network, DC electrical network, for rotating-machine balancing
Configuration
portable
Mode of use
automatic, manual
Protection level
rugged, rugged
Other characteristics
real-time, continuous, digital, high-performance, multi-parameter, with data logger, with touchscreen, multi-channel, data acquisition, graphic, with Rogowski inputs, wireless

Description

Power Quality Analyzer Sonel PQM-707 is an autonomous meter allowing for versatile measurement, analysis, and registration of energy networks parameters DC and 50/60Hz, including the quality of electric energy in accordance with the European standard EN 50160 and the Regulation of the Minister of Economy on detailed conditions of the electro-energetic system functioning. All parameters are measured in the S class of the IEC 61000-4-30 STANDARD guaranteeing high accuracy of measurements. The largest in this class of analyzers 7-inch colour touch screen enables intuitive and ergonomic operation. Thanks to the built-in lithium-ion battery, the analyzer allows for efficient work during the measurement without the necessity of connecting an external AC adapter. The analyzer is directed to a very wide range of users, with particular reference to the maintenance staff. Due to its mobility and autonomy, any problems occurring in the supply networks can be diagnosed on the spot. High measurement category (CAT IV 600V) makes the analyzer very safe, which provides peace of mind during every day use. The analyzer can be used in virtually all kinds of networks with rated voltage from 54V to 760V directly, or indirectly via transformers. Because of that PQM-707 can be used in the field of professional power engineering, maintenance services in industrial plants, as well as among those providing services focused on network analysis. Features: 7" touch screen - intuitive operating CAT IV 600V - high safety all parameters acc. to class S - high accuracy of measurements Li-Ion rechargeable battery - higher mobility removable memory card - recording data with no restrictions
