Power quality analyzer PQM-711
harmonicfor machine monitoringprocess

power quality analyzer
power quality analyzer
power quality analyzer
power quality analyzer
Add to favorites
Compare this product


Measured value
power quality, harmonic
Application domain
for machine monitoring, process, for electrical networks, power plant, AC energy network, DC electrical network, for rotating-machine balancing
Mode of use
automatic, manual
Protection level
rugged, rugged, IP65
Other characteristics
digital, real-time, continuous, low-temperature, high-performance, multi-parameter, with data logger, control, with GPS, multi-channel, data acquisition, wireless, with Rogowski inputs, computer-controlled

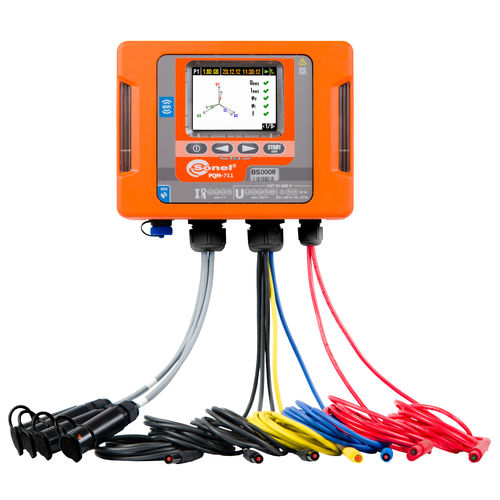

PQM-711 power quality analyzer is an advanced product for wide type of measurements, analysis and recording of network parameters 50/60 Hz and the power quality diagnostic according to European standard EN 50160. PQM-711 is an innovative model with a wireless communication Wi-Fi , which allows for automatic pairing with the included tablet, with a large 10" touch screen. Tablet allows full operating of the analyzer, live data preview and the reading and analysis of data stored in the internal memory. With this solution, the PQM-711 is an unique device that combines the advantages of the analyzer with built-in display and typical portable analyzers (known as Black Boxes).With the tablet you can very fast checked the device under test. On the other hand, you can leave the analyzer module for multi-measurements as a typical logger without display. You can very fast diagnose the machine under test using the tablet. On the other hand, you can leave the analyzer module itself for many days measurement as a typical logger without display. PQM-711 has a transient registration with a maximum sampling rate of 10 MHz (rapid changes in voltage) and control signals. The minimum duration of the registered transient is 650 ns.
