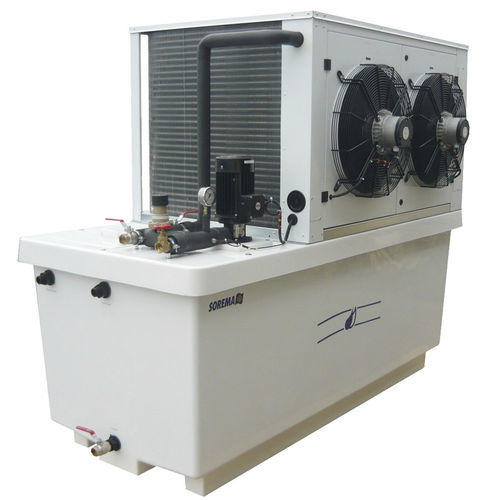

Water chiller RIS-H 950 seriesmobileair condenserstainless steel

water chiller
water chiller
water chiller
water chiller
water chiller
water chiller
water chiller
Add to favorites
Compare this product
indicative price

Characteristics

Material
water
Other characteristics
mobile, air condenser, stainless steel, immersion
Power

Max.: 53.8 kW

Min.: 6.1 kW

Maximum temperature

1 °C (34 °F)

Flow rate

Max.: 3 m³/h (105.944 ft³/h)

Min.: 1 m³/h (35.315 ft³/h)

Pressure

Max.: 2.5 bar (36.259 psi)

Min.: 1.3 bar (18.855 psi)

Description

Stainless steel body mobile chiller, with air condenser and atmospheric pressure tank. Designed to be used for chilling machines or exchangers in agri-food workshops. Chilling by immersion coil. – Buffer tank of 40 to 800 litres in polyethylene or insulated polyester (according to models) – Evaporator of stainless steel coil type or with plates (according to models) – R404A hermetic refrigeration compressor with air condenser, helical fan – Distribution pump (1 m3/h at 2.5 bars to 3 m3/h at 1.3 bars) – Safety by-pass – Automatic water back-up and overflow – Agitator – Electronic regulator – Correct water level indicator – Electrical cabinet for power and operation management
