Open frame power supply FSP320-2H35-A54H
1UAC/DCswitching

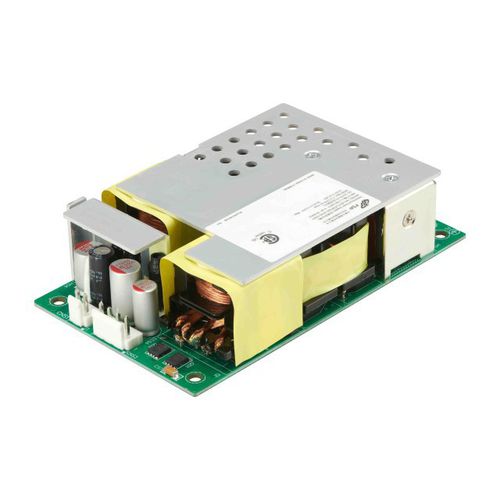

Open frame power supply - FSP320-2H35-A54H - Sparkle Power - 1U / AC/DC / switching
Open frame power supply - FSP320-2H35-A54H - Sparkle Power - 1U / AC/DC / switching
Add to favorites
Compare this product

Characteristics

Mounting / format
open frame, 1U
Type
AC/DC
Technology
switching
Applications
for electrical networks
Input voltage

Min.: 90 V

Max.: 264 V

Output voltage

12 V, 54 V

Current

Min.: 0 A

Max.: 8.3 A

Power

100 W, 220 W

Description

This AC-DC switching power supply is Class-I design (with Protect Earth safety construction) in a package of 3 x 5 inches form factor and is suitable for 1U chassis. PSU is isolated between 54V & 12V output, also isolated between the Protect Earth and Return which is suitable for PoE networking applications. This PSU is capable of delivering 320 watts of continuous power under 7 CFM conditions and 50℃operation temperature. Feature EN55032 Level B emission 1.5KVac isolated between PE and RETURN Surge protection ±2 KV diff., ±4 KV com
