Open frame power supply FSP450-H35-A54AC/DCswitchingCE
Add to favorites
Compare this product
Characteristics
- Mounting / format
- open frame
- Type
- AC/DC
- Technology
- switching
- Certifications
- CE, RoHS
- Applications
- for electrical networks
- Input voltage
Max.: 264 V
Min.: 90 V
- Output voltage
24 V, 54 V
- Current
Max.: 8.34 A
Min.: 0 A
- Power
200 W, 450 W
Description

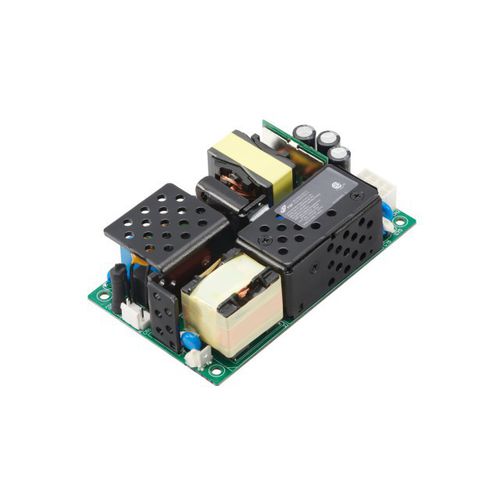

This series AC-DC switching power supply is Class-I design which is with Protected Earth. The units are constructed on a printed circuit board in a 3 x 5 x 1.4 inches form factor. Input power less than 0.5W is suitable for end products that have standby mode requirements. PSU is capable of delivering 450 watts of continuous power at 18 CFM forced air cooling or 200 watts at convection cooling and 50℃operation temperature. They are suitable for information, industry, and PoE applications.
Feature
PFC build-in
High efficiency
EN55032 Level B emission
Input power < 0.5W at 0.2W load
1.5KVac isolated between PE and RETURN
