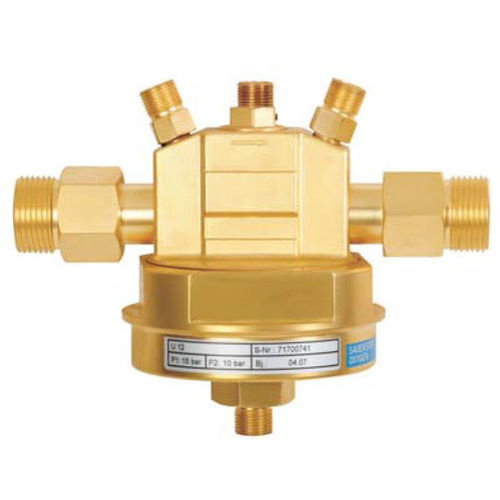

Air pressure regulator U12
membranedome-loadedsingle-stage

air pressure regulator
air pressure regulator
air pressure regulator
Add to favorites
Compare this product


Characteristics

Product
for air
Technology
membrane, dome-loaded
Number of stages
single-stage
Material
brass
Applications
pneumatic
Pressure

40 bar
(580.15 psi)

Flow

300 m³/h
(10,594.4 ft³/h)

Orifice diameter

0.5 in

Description

Dome loaded diaphragm line pressure regulator Remote controlled pressure regulation (e.g. process control or cutting machines) For flow rates up to 300 m³/h air Pneumatic supply to dome loaded diaphragm controlled by small pressure regulator ST 2000 Single-stage with high control accuracy Outlet pressue reduction by special vent hole in the diaphragm assembly for outlet pressures > 4 bar Flow increase by special dome control possible Central filter in the pressure regulator Pressure regulator with integrated relief valve Accessories like wall brackets and in-/ outlet fittings are also available
