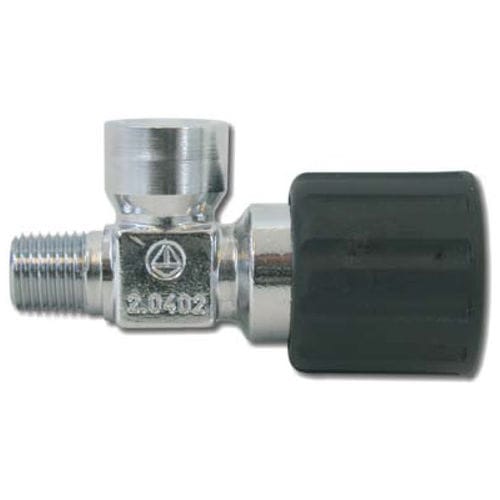

Brass control valve (e. g. for the pressure regulator outlet)
For non corrosive gases and gas mixtures up to qualität 6.0
Suitable for pressures up to 50 bar (control valve) or 200 bar (shut-off-valve)
Ergonomically designed
High control accuracy
Compact design
Operating pressure
Control valve:
Shut-off valve:
max. 50 bar
max. 200 bar
Nominal diameter 3 mm
Materials
Body:
Diaphragm:
Control spindle:
chrome-plated brass
Duratherm 600
SS 1.4404 (SS 316 L)
Inlet connection
1/4"-18 NPT male
Outlet connection
1/4"-18 NPT female
Leak rate
< 1 x 10-8 mbar l/s He
Weight 0,5 kg
