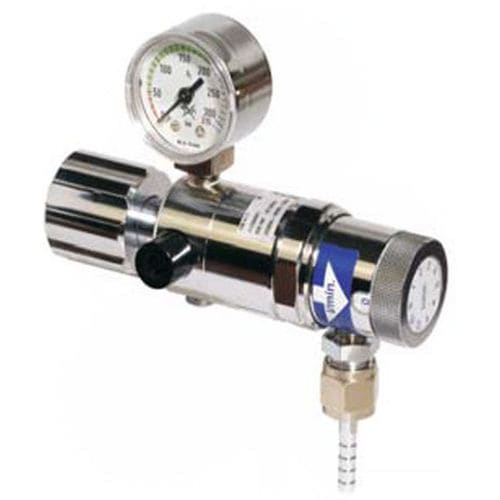

Gas pressure regulator FM 41-L

pistonsingle-stagecylinder

Single-stage cylinder pressure regulator for medical gases user friendly adjustment of flow by a orifice selector 1 gland outlet for connection to a tube or respiration mask 2 additional outlets M12x1 fixed at approx. 4 bar constant pressure for the use of respiratory equipment All materials free of chlorine and fluorine Compact design Light weight (830 g) Ergonomically designed With manual connection for easy mounting without tool Inlet pressure P1 max. 200 bar Flow rate 1, 2, 3, 4, 5, 6, 9, 12, 15 l/min. Materials Body: Piston: Valve seat: chrome plated brass brass Zytel Cylinder connection acc. to international standards and gas type Outlet selectable Pressure gauge safety pressure gauge EN837-1/cl2.5/NG40 Weight 830 g
