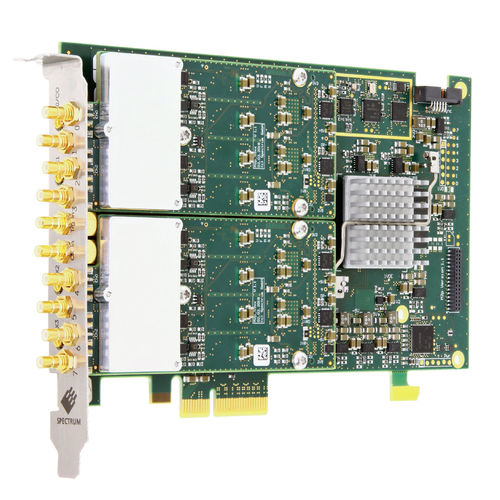

PCIe digitizer M2p.59xx series

up to 150 MS/s2-channel4-channel

DIGITIZER - PCIe - up to 125 MS/s - 16-bit - 16 bit digitizer with PCIe interface - Models with 125 MS/s, 80 MS/s, 40 MS/s, 20 MS/s and 5 MS/s - Models with 8 or 4 or 2 or 1 channel - Up to 60 MHz bandwidth - Input range from ± 200 mV up to ± 10 V - Simultaneously sampling on all channels - Separate ADC and amplifier per channel - 512 MSample on-board memory - Synchronisation of up to 16 cards = 128 channels (with Star-Hub) - 24 different models available The M2p.59xx series allows recording of up to eight channels with sampling rates of up to 125 MS/s. These cards offer outstanding A/D features both in resolution and speed. The cards can be switched between Single-Ended inputs with a programmable offset and true differential inputs. If used in differential mode each two inputs are connected together reducing the number of available channels by half. The 16 bit vertical resolution have four times the accuracy compared to 14 bit cards and sixteen times the accuracy if compared with a 12 bit card. All boards of the M2p.59xx series may use the whole installed on-board memory of up to 512 MSamples, completely for the currently activated number of channels.
