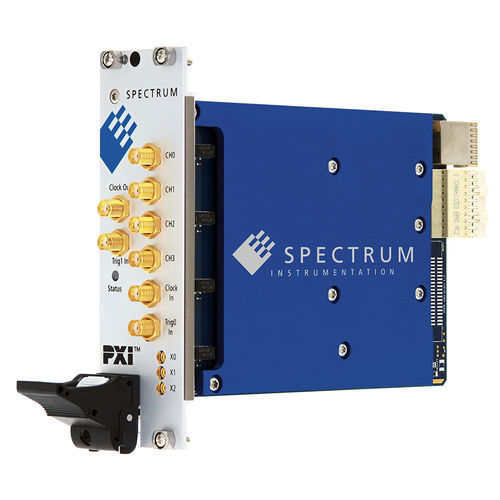

PXIe digitizer M4x.22xx series

up to 5 GS/s2-channel4-channel

DIGITIZER - PXIe - up to 5 GS/s - 8-bit - 8 bit digitizer with PXIe interface - Models with 5 GS/s, 2.5 GS/s and 1.25 GS/s - Models with 4 or 2 or 1 channel - Up to 1.5 GHz bandwidth - Input range from ± 200 mV up to ± 2.5 V - Simultaneously sampling on all channels - Separate ADC and amplifier per channel - 4 GSample on-board memory - Support of PXI reference clock, PXI star-trigger and PCI trigger-bus - 9 different models available The 9 models of the M4x.22xx PXI Express (PXIe) series high-speed digitizer are designed for the ultra fast and high quality data acquisition. Each of the input channels has its own A/D converter and its own programmable input amplifier. This allows to record signals simultaneously on 2 channels with 2.5 GS/s and on 4 channels with 1.25 GS/s without any phase delay between them. The extremely large on-board memory allows long time recording even with the highest sampling rates. All boards of the M4x.22xx series may use the whole installed on-board memory for the currently activated number of channels. A FIFO mode is also integrated on the board. This allows the acquisition of data continuously for online processing or for data storage to hard disk.
