Overview

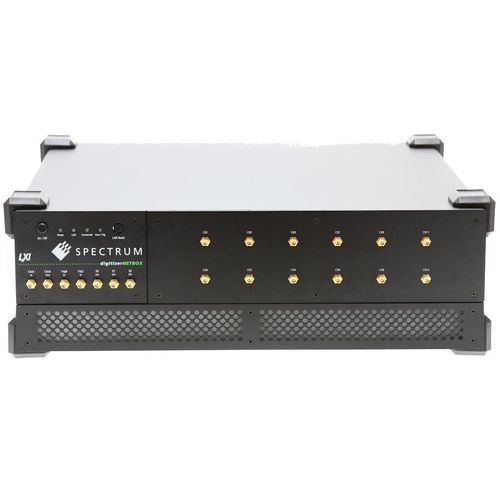

The DN6.33x series are ultra-fast Ethernet/LXI digitizerNETBOX instruments offering 12-bit resolution and sampling rates from 3.2 GS/s up to 10.0 GS/s, available in multi-channel configurations up to 12 channels. These units pair very high-bandwidth A/D amplifier front-ends with flexible on-board memory and remote operation via Ethernet/LXI for lab and automated test applications.

Key highlights

• Models with 10.0 GS/s, 6.4 GS/s and 3.2 GS/s sampling rates
• Analog bandwidth up to 3.0 GHz (2.0 GHz variants for 6.4/3.2 GS/s models)
• Available channel counts: 4, 6, 8, 10 or 12
• On-board memory: standard 1/2 GSamples per channel; optional 4/8 GSamples per channel
• Four input ranges from ±200 mV to ±2.5 V; 50 Ω input impedance; DC coupling; single-ended inputs
• Trigger modes: Window, re-arm, OR/AND and multiple trigger configurations
• Remote control and integration via Ethernet / LXI

Available models and main per-model data (extracted from product table)

• DN6.335-04 — Ethernet; 4 analog inputs; 12 Bit; 10 GS/s (1–2 active channels), 5 GS/s (4 active); 3 GHz bandwidth; input ranges ±200 mV to ±2.5 V; 50 Ω; DC; single-ended; user offset ±100%; Memory (Max): 2x2 GSamples (2x8 GSamples optional); Internal Star-Hub sync; Features: 8 Bit Mode, 12 Bit Packed Mode, Multiple Recording, Timestamp; Options: Block Average, Digital Pulse Generator
• DN6.335-06 — Ethernet; 6 analog inputs; 12 Bit; 10 GS/s (1–2 active), 5 GS/s (4–6 active); 3 GHz; input ranges ±200 mV to ±2.5 V; Memory (Max): 3x2 GSamples (3x8 GSamples optional); Internal Star-Hub sync; same features/options
• DN6.335-08 — Ethernet; 8 analog inputs; 12 Bit; 10 GS/s (1,2,4 active), 5 GS/s (6,8 active); 3 GHz; Memory (Max): 4x2 GSamples (4x8 optional)
• DN6.335-10 — Ethernet; 10 analog inputs; 12 Bit; 10 GS/s (1,2,4 active), 5 GS/s (6,8,10 active); 3 GHz; Memory (Max): 5x2 GSamples (5x8 optional)
• DN6.335-12 — Ethernet; 12 analog inputs; 12 Bit; 10 GS/s (1,2,4,6 active), 5 GS/s (8,10,12 active); 3 GHz; Memory (Max): 6x2 GSamples (6x8 optional)
• DN6.333-04 — Ethernet; 4 analog inputs; 12 Bit; 6.40 GS/s (1–2 active), 3.20 GS/s (4 active); 2 GHz bandwidth; Memory (Max): 2x2 GSamples (2x8 optional)
• DN6.333-06 — Ethernet; 6 analog inputs; 12 Bit; 6.40 GS/s (1–2 active), 3.20 GS/s (4–6 active); 2 GHz; Memory (Max): 3x2 GSamples (3x8 optional)
• DN6.333-08 — Ethernet; 8 analog inputs; 12 Bit; 6.40 GS/s (1,2,4 active), 3.20 GS/s (6,8 active); 2 GHz; Memory (Max): 4x2 GSamples (4x8 optional)
• DN6.333-10 — Ethernet; 10 analog inputs; 12 Bit; 6.40 GS/s (1,2,4 active), 3.20 GS/s (6,8,10 active); 2 GHz; Memory (Max): 5x2 GSamples (5x8 optional)
• DN6.333-12 — Ethernet; 12 analog inputs; 12 Bit; 6.40 GS/s (1,2,4 active), 3.20 GS/s (6,8,10,12 active); 2 GHz; Memory (Max): 6x2 GSamples (6x8 optional)

Technical specifications

• Resolution: 12 Bit (with 8 Bit mode and 12 Bit packed mode available)
• Maximum samplerate: up to 10.0 GS/s (model dependent); other variants at 6.4 GS/s and 3.2 GS/s
• Analog bandwidth: up to 3.0 GHz (3 GHz variants) or up to 2.0 GHz (6.4/3.2 GS/s variants)
• Channel counts: 4, 6, 8, 10, 12 (model dependent)
• Input ranges: ±200 mV to ±2.5 V (four selectable ranges)
• Input impedance: 50 Ω
• Coupling: DC
• Input type: Single-ended
• On-board memory: baseline 1/2 GSamples per channel; optional 4 GSamples or 8 GSamples per channel
• Trigger modes: Window, re-arm, OR/AND triggers
• Synchronization: Internal Star-Hub (multi-module sync)
• Timestamping, multiple recording modes, block average option
• Remote control: Ethernet / LXI (digitizerNETBOX remote device)
