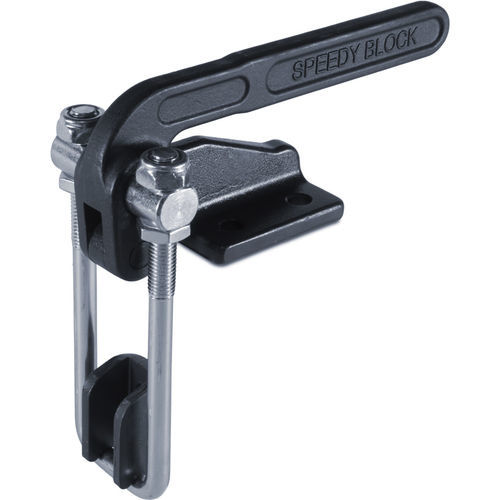

Latch type toggle clamp T3/T3S

double-rodsteelfor heavy loads

Toggle clamp Form T3 - Heavy Toggle clamps - Latch series Base, control lever and hooking bracket: Hot stamped steel, black painted (T3-T30) or manganese phosphate steel. Base-handle pivot: Hardened, ground and knurled steel to prevent rotation. Tie rod, swinging pivot and nuts: Galvanized steel. Executions: • T3-T3S: equipped with double threaded tie rod with nuts, swinging pivot and hooking bracket. Features and applications: These tools are particularly suitable for closing machine covers or doors. The construction features and the materials used give these tools high resistance, making them suitable for particularly heavy-duty uses. The position of the threaded tie rod can be adjusted within a certain range (see dimension “D”) to fit the requirements of use. The support base is perpendicular to the line of action of the force. In the closed position, the control lever is parallel to the support base. A special grease is placed between the contacting surfaces during assembly. Other available executions: Series with safety lever, light series. Accessories: • Tie rods of different sizes
