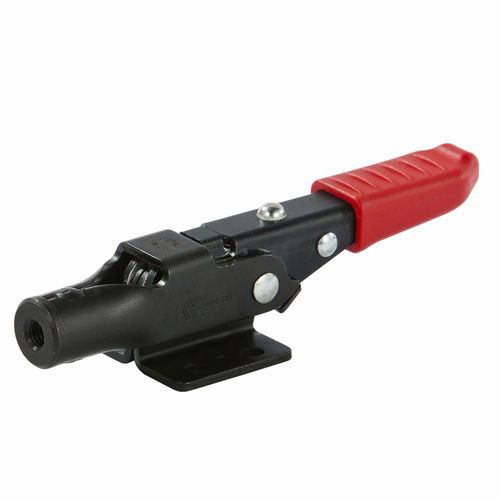

Toggle clamp Form T5 with safety lock
Toggle clamps - Latch series
*** Also available in stainless steel material ***
T5 Latch series with safety lock (light performance) "Patented"
The sizes of this series are also produced in stainless steel.
Material:Sheet metal parts and riveted pivots in galvanized steel or AISI 304 stainless steel.
Turned parts in galvanized steel or AISI 303 stainless steel.
Handles:Red polyurethane resistant to oils, grease and other chemical agents.
Rod:To be ordered separately.
Features and applications:The tool can be opened with only one hand, disengage the working surface (the clamping lever opens by itself) and close it again for the next operation.
It is possible to choose from three different optional rods (to be ordered separately):
Eye bolt rod "TG", T-shaped rod "TT", Hook Rod "TU".
The construction features and materials chosen make these tools highly resistant. The support base is parallel to the force line of action. In the closed position, the control lever is parallel to the support base.
A special grease is placed between two contacting surfaces during assembly.
