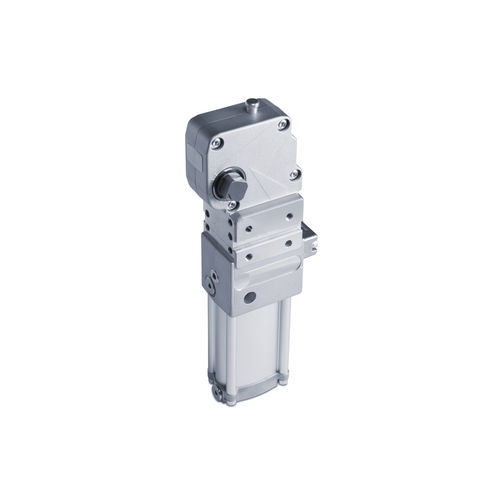

Pneumatic toggle clamp SBPC-P-40

verticalcompactadjustable

Toggle clamp Form SBPC-P-40 Toggle clamps - Pneumatic series *** New *** PNEUMATIC POWER CLAMP Body: High quality light aluminium alloy, compact shape. Square shaft: Nitrided steel. Integrated sensor: Aluminum body, electromagnetic compatibility according to EN 60947-5-2:2007 + A1:2012 with 90° swivel connector Features: This device is recommended for use on test, welding and tooling control applications that present very small spaces. Opening angle adjustable from 0° to 135. Clamping lever to be ordered separately Manual release button to open the device in the absence of air pressure. Operating pressure 2 to 8 bar / 30 to 115 psi. Assembly by means of threaded and dowel holes on all four sides of the tool. Lubrication: All devices are lubricated for life at the factory. It is not necessary to lubricate the mechanism during its use.
