Pneumatic toggle clamp EPM

horizontalsteelfor heavy loads

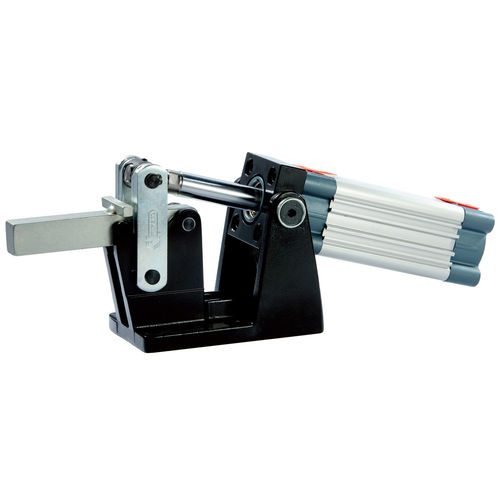

Toggle clamp Form EPM Toggle clamps - Pneumatic series Available in magnetic execution Base: Spheroidal cast iron, black painted. Clamping lever: Galvanized steel. Rotation pivots and bushings: Hardened and ground steel. Pneumatic cylinder: Aluminium, magnetic ISO standards, with double pneumatic brake in the rear and front head. Operating pressure: 10 bar. Maximum temperature: 80°C. Features and applications: A filter-lubricator-reducer assembly is recommended for proper cylinder operation. To ensure a prolonged life of the mechanical parts, it is advisable to be equipped with appropriate flow regulators and to calibrate the speed of execution of the movements starting from a low speed and gradually increasing the air flow. The values of the clamping force Fs shown in the table were detected at a pressure of 10 bar. A special grease is placed between the contacting surfaces during assembly. Accessories (to be ordered separately): • Safety sensor type AU570
