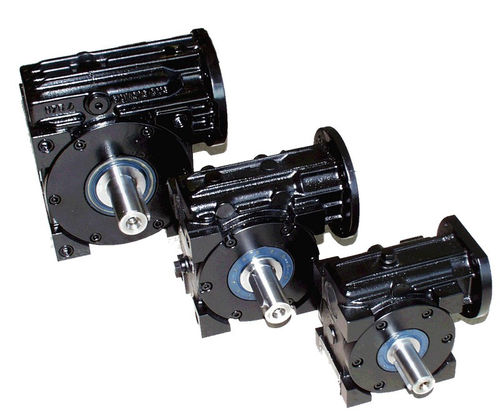

Worm gear reducer

right angle20 - 50 Nm50 - 100 Nm

SPN worm gears are manufactured single-stage as well as with preceding spur gear stage in foot and flange design. The low-backlash worm gears are also inserted in non-stop operation and cycle operation in tool and packaging machines. Optimal material combinations and coordinated toothing geometry guarantees a high smooth running and best synchronization. SPN worm gears are available with full quill or double-sided output shaft. Data of worm gear units Transmission ratio range 7,5 – 476 Power range - 3 kW Torque range - 280 Nm
