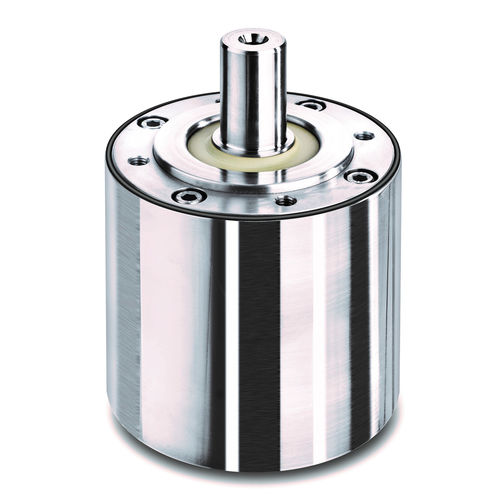

Planetary gearbox E-P88-S-VAcoaxial50 - 100 Nm20 - 50 Nm
Add to favorites
Compare this product
Characteristics
- Type
- planetary
- Shaft orientation
- coaxial
- Torque
- 50 - 100 Nm, 20 - 50 Nm
- Performance
- low-backlash
- Applications
- transmission, for food industry machinery
- Other characteristics
- stainless steel, hygienic design
- Rotational speed
Min.: 0 rpm
(0 rad.min-1)Max.: 6,000 rpm
(37,699.11 rad.min-1)
Description
This planetary gearbox was developed for applications in the hygiene sector. With the seamless design and material selection, the gearbox can be integrated into the Hygienic Design Zone in a process-integrated manner.
YOUR BENEFITS
+ High corrosion protection - external components are made of stainless steel 1.4404
+ Operating temperature below 60° C in S1 operation due to finely tuned sub-systems
+ High flexibility due to different gear ratios
Technical data
+ Gear ratio 4:1 - 10:1
+ Rated Output torque: 35 - 100 Nm
+ Backlash: less than 7 arcmin
+ Lubrication: Food grade gear grease
+ Maximum Input Speed: 6000 rpm
+ Weight: 2,9 kg
Catalogs
Planetary Gearbox E-P88-S-VA
2 Pages
