Nozzle with ruby orifice

cleaningsprayfor water

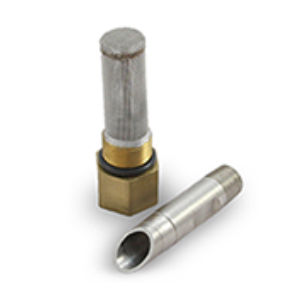

Ruby Trim Needle Jet Nozzles Patented orifice insert system Mechanically assembled, no adhesive construction Longer life and pressure range Optional filter screens for all pipe sizes The Ruby Trim Needle Jet Nozzles features the Patented Orifice Insert System Spray Nozzle Engineering has developed a patented Orifice Insert System on all Ruby nozzles. This mechanical sealing method does not rely on outdated adhesive anchors; reducing the risk of premature orifice dislodgement resulting from water hammer, line shock or cleaning operations. Standard orifice materials available:– RUB – Ruby. Characteristics High Impact needle jet (0º spray angle) available in two body configurations (Flat and angle). Applications Trim squirt or deckle cutting in pulp and paper mills, process equipment or when a high impact and hard wearing needle jet is required. Materials 316 stainless steel body complete with a high grade Ruby insert. Threads 1/8″ BSP or NPT pencil and protected body nozzles (Adaptors available on request).
