Indexing unit with collet ER 32

rotaryparallel shaftfor machines

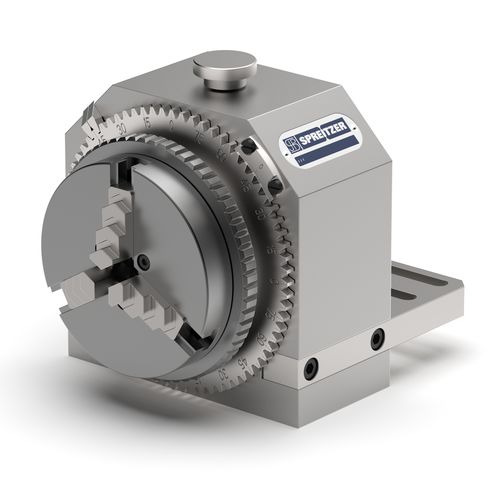

This indexing unit with collet chuck is specially designed for use on wire-EDM machines provided. Through the mounting holes mounting on hole pattern 40 mm and 50 mm by M8 srews is possible. Indexing via indexing plate with 72 positions, the interim indexing positions by 360°-scale and nonius. Advantages at a glance Mechanical operation Material: magnetizable chrome steel, rust-resistant Finish: hardened, precision grinded, fully sealed precision rolling bearings Collet ER 32 (470 E), Ø2 – 20 mm Square-accuracy 0,005 mm Parallel-accuracy 0,003 mm Concentricity 0,01 mm Indexing precision ±2’
