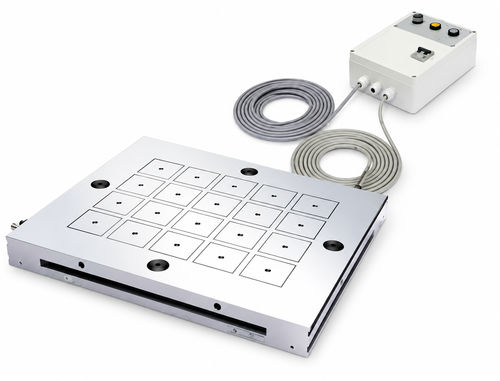

Electro-permanent magnetic chuck

for millingfor machine toolsmold

Electro-Permanent Magnetic Chuck in Solid Steel Design The Electro-Permanent Magnetic Chuck in solid steel design offers maximum rigidity, high clamping precision and exceptional holding forces. Thanks to its patented monoblock construction with a solid steel surface, it is ideally suited for tool and mold making as well as demanding applications in mechanical engineering. The robust solid steel surface allows the machining of workpieces with holes and cut-outs without damaging the magnetic chuck. Optional movable pole extensions ensure distortion-free clamping and expand the range of applications for complex workpiece geometries. The clamping force is generated by a short electrical impulse. Once activated, the system operates energy-autonomously – without further power consumption, heat generation or interfering cable connections during machining. Benefits ✔ Patented monoblock construction with solid steel surface ✔ Maximum clamping precision and rigidity ✔ Holding forces exceeding 3,500 N per pole ✔ Machining of workpieces with cut-outs and through-holes ✔ Distortion-free clamping with movable pole extensions ✔ 100% protected against hot chips and coolant ✔ No thermal distortion and low residual magnetism ✔ Only a short electrical impulse required for switching ✔ No power consumption during machining ✔ Ideal for toolmaking, mold making and mechanical engineering Technical Features Solid steel surface Pole dimensions: 50 × 50 mm Holding force: > 3,500 N per pole Available including control unit Modularly expandable clamping surface The ideal magnetic clamping solution for maximum precision, process reliability and demanding milling operations.
