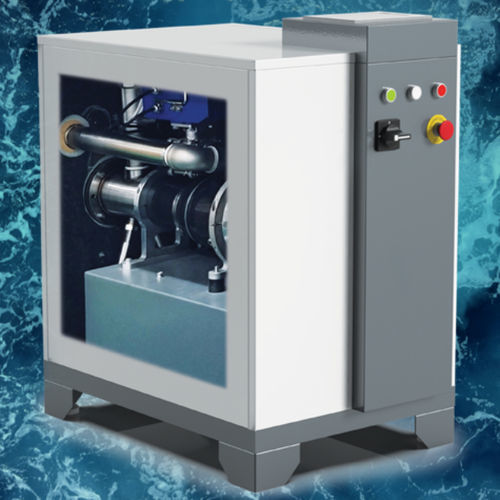

Air blower G25 seriesbiogascentrifugalsingle-stage
Add to favorites
Compare this product
Characteristics
- Type
- air, biogas
- Technology
- centrifugal
- Number of stages
- single-stage
- Applications
- for wastewater treatment, for the cement industry, for the textile industry, sewage treatment, sludge, tank
- Voltage / frequency
- 380 v / 50 Hz, 380 v / 60 Hz, 400 V / 50 Hz
- Other characteristics
- oil-free, high-pressure, compact
- Flow
2,220 m³/h
(78,398.56 ft³/h)Max.: 2,220 m³/h
(78,398.56 ft³/h)Min.: 240 m³/h
(8,475.52 ft³/h)- Operating pressure
Max.: 1 bar
(14.504 psi)Min.: 0.15 bar
(2.176 psi)- Nominal power
25 kW, 37 kW
(33.991 hp, 50.306 hp)- Sound level
73 dB, 74 dB
- Weight
140 kg, 150 kg
(308.65 lb, 330.69 lb)- Length
930 mm
(36.61 in)- Depth
558 mm
(22 in)- Height
928 mm
(36.5 in)
Description
G25 Jet Blower Series:
- Models: 25kW and 37kW
- Performance: Max flow rates of 25 m³/min to 37 m³/min, and a consistent max speed of 100,000 RPM.
- Enhanced Efficiency: Up to 20% more energy efficiency compared to industry-standard turbo blowers. 40% more energy efficient than Roots style blowers
- Unsurpassed Durability: Engineered for an impressive 5-year maintenance-free lifespan.
- Advanced Operation: Equipped with programmable active valves for enhanced control.
- Power Density: The 37kW system weighs just 150 kg.
- Remarkably Quiet: Sound pressure levels of only 73 to 74 dB(A).
Compressor Type - Centrifugal, Single Stage
Coolant - Forced air cooling
Input Voltage - 220VAV, 50/60Hz
Dimensions - 930 x 558 x 928 mm
Weight - 130-150kg
Noise Level - 75dB
Overall Efficiency - ~75%%
Catalogs
G-25 Jet Blower Brochure
9 Pages
