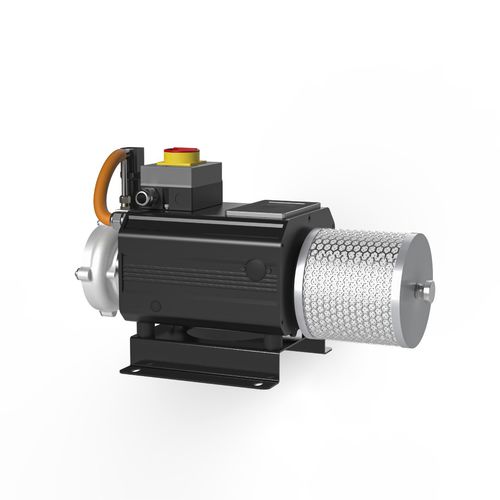

Air turbo-blower G15 4kWgassingle-stagedrying
Add to favorites
Compare this product
Characteristics
- Type
- air, gas
- Number of stages
- single-stage
- Applications
- drying, for blowers, for slurries, for vacuum, sewage treatment, for water, suction, for packaging, glass, conveying, cooling, for the cement industry, discharge, for pharmaceutical products, fiberglass, for machines, for boiler, for wastewater treatment, for medical devices, for plastics, for ventilation, for whirlpool, recirculation, for dairy products, for food, for the petrochemical industry, for the steel industry, for bulk materials, for chemicals, for food applications
- Voltage / frequency
- 100-240 V, 220 V / 50 Hz, 220 v / 60 Hz, 230V / 50Hz, 230V / 60Hz, 380 v / 50 Hz, 380 v / 60 Hz, 400 V / 50 Hz
- Norms
- UL
- Energy class
- IE4
- Other characteristics
- compact, oil-free, high-speed, axial, high-pressure, remote-drive, small, variable-speed, with frequency converter, three-phase
- Flow
Max.: 300 m³/h
(10,594.4 ft³/h)Min.: 30 m³/h
(1,059.44 ft³/h)- Operating pressure
Max.: 500 mbar
(7.252 psi)Min.: 100 mbar
(1.45 psi)- Nominal power
Max.: 4,000 W
(5.438 hp)Min.: 900 W
(1.224 hp)- Sound level
71 dB
- Weight
11.2 kg
(24.69 lb)- Length
596 mm
(23.46 in)- Depth
346 mm
(13.6 in)- Height
318 mm
(12.5 in)
Description
G15 4kW High Pressure Jet Blower
Product Name: G15 4kW High Pressure Jet Blower (formerly G15 3.5kW50kPa)
Technology: Ultra-High Speed Jet Blower with Smart Pulse Aeration (SPA) Technology
Applications: Wastewater Treatment, Fishery Aquaculture, Food and Pharmaceutical Industry, Yeast Fermentation Industry, Electronics Industry, General Clean Air Supply, Textile Printing and Dyeing Industry
Key Features:
Energy Efficiency: Delivers over 50% energy savings compared to existing industry blowers
Intelligent Control: Integrated touchscreen for autonomous operation and system management
Quiet Operation: Low noise levels, less than 71dB
Durability: Maintenance-free for two years with a quick 10-minute self-service option
Performance:
Rated Power: 4.0kW
Rated Motor Speed: 80,000 rpm
Max Pressure: 50kPa (500mbar)
Max Flow: 4.7m³/min (282m³/hour)
Dimensions: 493 mm (H) x 250 mm (W) x 315 mm (D)
Weight: 11.2 kg
Efficiency: Overall efficiency of ~75%
Convertor Power Factor: >97%
Intelligent Operation and Control:
HMI: Integrated Human-Machine Interface with pressure and temperature sensors for anti-surge control and PLC Multi-Mode Operation
Monitoring: Real-time monitoring of temperature, pressure, speed, electrical current, and voltage to prevent surge or choke events
IoT Connectivity: Real-time monitoring, cloud storage, automated alerts, energy efficiency scores, remote management, and proactive maintenance
Warranty and Service Coverage:
Optional Warranty: Extension from 12 to 36 months
Service: Includes first service after 18,000 running hours with parts and labor
