Air turbo-blower G15gassingle-stagefor blowers
Add to favorites
Compare this product
Characteristics
- Type
- air, gas
- Number of stages
- single-stage
- Applications
- for blowers, cooling, sewage treatment, suction, for pharmaceutical products, conveying, discharge, drying, fiberglass, for boiler, for packaging, for the petrochemical industry, for bulk materials, for whirlpool, glass, for vacuum, for wastewater treatment, for food, for machines, for water, for the cement industry, for the steel industry, for the textile industry, for plastics, recirculation, for slurries, for chemicals, for ventilation, for food applications, for dairy products, for medical devices
- Voltage / frequency
- 100-240 V, 220 V / 50 Hz, 220 v / 60 Hz, 230V / 50Hz, 230V / 60Hz, 380 v / 50 Hz, 380 v / 60 Hz, 400 V / 50 Hz
- Norms
- UL
- Energy class
- IE4
- Other characteristics
- compact, oil-free, high-speed, axial, high-pressure, remote-drive, three-phase, small, variable-speed, with frequency converter
- Flow
Min.: 180 m³/h
(6,356.64 ft³/h)Max.: 720 m³/h
(25,426.56 ft³/h)- Operating pressure
Min.: 60 mbar
(0.87 psi)Max.: 400 mbar
(5.802 psi)- Nominal power
7.5 kW
(10.197 hp)- Sound level
74 dB
- Weight
19 kg
(41.89 lb)- Length
604 mm
(23.78 in)- Depth
268 mm
(10.6 in)- Height
355 mm
(14 in)
Description

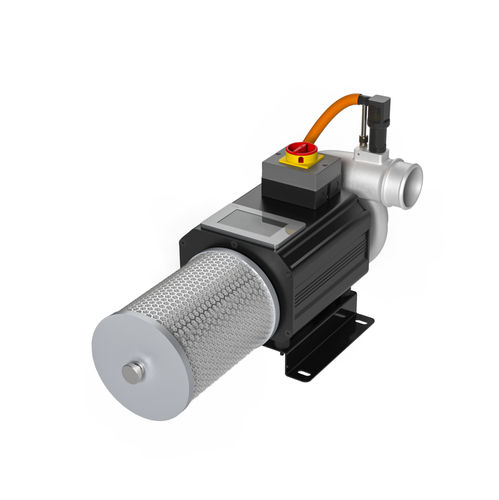

G15 7.5kW High Pressure Jet Blower
Product Name: G15 7.5kW High Pressure Jet Blower
Technology: Ultra-High Speed Jet Blower with Smart Pulse Aeration (SPA) Technology
Applications: Wastewater Treatment, Fishery Aquaculture, Food and Pharmaceutical Industry, Yeast Fermentation Industry, Electronics Industry, General Clean Air Supply, Textile Printing and Dyeing Industry
Key Features:
Energy Efficiency: Delivers over 50% energy savings compared to existing industry blowers
Intelligent Control: Integrated touchscreen for autonomous operation and system management
Quiet Operation: Low noise levels, less than 71dB
Durability: Maintenance-free for two years with a quick 10-minute self-service option
Performance:
Rated Power: 7.5kW
Rated Motor Speed: 80,000 rpm
Max Pressure: 40kPa (400mbar)
Max Flow: 12m³/min (720m³/hour)
Dimensions: 268mm (H) x 604mm (W) x 355mm (D)
Weight: 19kg
Efficiency: Overall efficiency of ~75%
Convertor Power Factor: >97%
Intelligent Operation and Control:
HMI: Integrated Human-Machine Interface with pressure and temperature sensors for anti-surge control and PLC Multi-Mode Operation
Monitoring: Real-time monitoring of temperature, pressure, speed, electrical current, and voltage to prevent surge or choke events
IoT Connectivity: Real-time monitoring, cloud storage, automated alerts, energy efficiency scores, remote management, and proactive maintenance
Warranty and Service Coverage:
Optional Warranty: Extension from 12 to 36 months
Service: Includes first service after 18,000 running hours with parts and labor
VIDEO
Catalogs
G-15 Turbo Blower Brochure
8 Pages
G-25 Jet Blower Brochure
9 Pages
