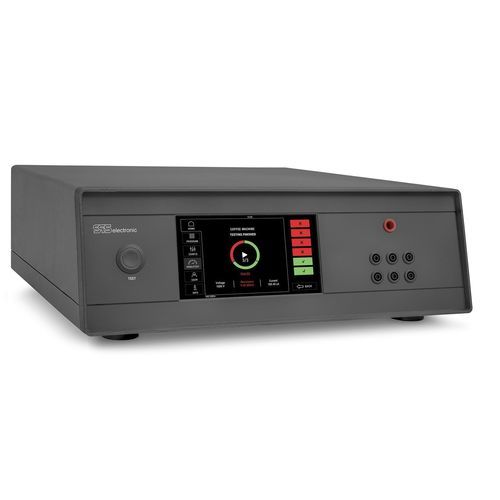

Ground bond tester P 6600H

for high-voltageACsafety

• Modern desktop device • Ground bond test AC: 1 - 32 A / 0 - 6 Ω • 4-wire measurement technology • Fully electronic power source • Complies with all current standards (IEC, UL, EN, VDE etc.) • Wide-range power supply unit: 90 - 253 V, 50 Hz / 60 Hz The P 6600U and P 6600H ground bond testers are outstanding solutions for carrying out ground bond tests and combine advanced technology with sophisticated design. Both devices are designed as modern desktop devices that offer an efficient and user-friendly solution for safety-related tests. The P 6600H tester is equipped with a country-specific socket on the front panel for connecting the DUT. This socket enables a direct connection to the DUT. In contrast, the P 6600U tester has banana sockets and high-voltage sockets on the front panel. These sockets allow the connection of specific test adapters. Both devices are specially designed for carrying out ground bond tests. With a test current of 1 to 32 A and a measuring range of up to 10 Ω, the devices can test the effectiveness of the ground bond and ensure that the safety requirements are met. Overall, the P 6600U and P 6600H PE conductor test sets are a reliable choice for anyone who places the highest demands on the safety and reliability of electrical systems. With their elegant and functional design, they combine technical excellence with ease of use, making them indispensable tools for laboratories, workshops and industrial applications.
