Industrial workstation

mobile

Overview
This DUT enclosure with an angled trap door was developed for submersible pump testing. The design supports safety, leak and functional tests and includes an adapter mounted on a transport carriage to handle relatively heavy DUTs.

Workstation

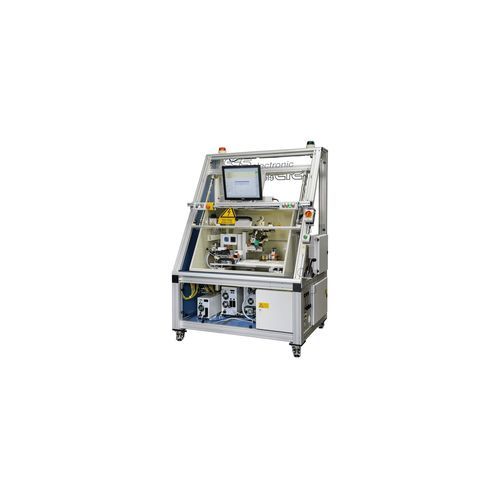

The mobile workstation integrates all testing devices and control elements in its base. The trap door and the transport carriage are controlled automatically by the test system to ensure repeatable test cycles and safe handling.

Operation
Operator extends the transport carriage, places the DUT and connects test contacts. The carriage is pushed into the test area on smooth-running slides. After pressing the start button, the angled trap door closes automatically and the programmed test sequence begins. Upon successful completion, the trap door reopens and the carriage is dispensed for DUT removal and exchange.

Key features

• Angled trap door (DUT enclosure) designed for submersible pump testing
• Adapter mounted on transport carriage to handle relatively heavy DUTs
• Supports safety test, leak test and functional test
• Automatic control of trap door and carriage with push-button operation
• Smooth-running slides for reliable carriage transport
• Mobile workstation with integrated testing devices and control elements in the base
• Ergonomic layout for safe handling and flexible use across production areas

Technical specifications

• Application: submersible pump testing (safety, leak and functional tests)
• Trap door: angled trap door design for easy access and sealing
• Adapter: transport-carriage-mounted adapter for heavy DUTs
• Supported tests: safety test, leak test, functional test
• Operation sequence: extend carriage → place and connect DUT → push carriage into test area → actuate trap door automatically → run tests → automatic ejection
• Motion hardware: smooth-running slides for carriage transport
• Integration: mobile base with integrated testing devices and control elements
