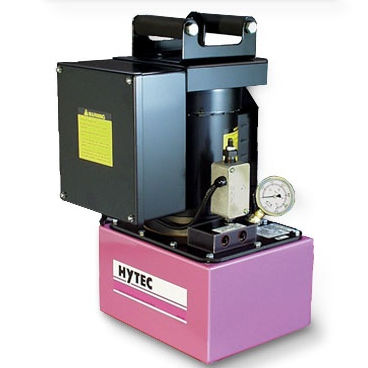

These electric/hydraulic pumps are two-stage, continuous pressure (demand) pumps that contain all the necessary controls and circuitry for powering any single- or double-acting continuous pressure workholding system. They have a pressure switch and an external pressure regulator, both infinitely adjustable throughout the operating pressure range of 1,000 to 5,000 psi. An internal safety relief valve prevents damage from exceeding the maximum rated pressure.
They are gerotor/axial piston pumps with a totally enclosed fan cooled (TEFC) induction
motor. The 1⁄4" NPTF outlet manifold can be replaced by any Hytec pump-mounted valve.
Shipped with two gallons of hydraulic oil.
Features
• NEMA 12 electrical enclosure and controls
• CSA approved
• Drip/chip cover
• Liquid filled gauge
• Dual carrying handles
• Thermal overload protection
• 2.5-gallon metal reservoir
• 44 cu. in./min. oil flow at max. pressure
• 590 cu. in. usable oil
