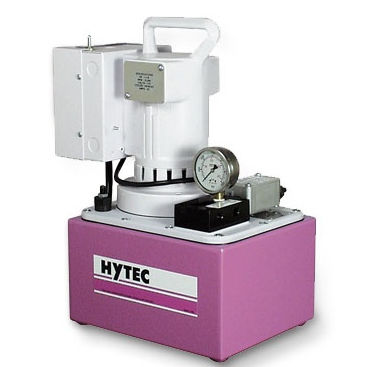

Hydraulic axial piston pump 100220

gearelectricdouble-acting

This electric/hydraulic pump is a two-stage, continuous pressure (demand) pump that contains all the necessary controls and circuitry for powering any single- or double-acting continuous pressure workholding system. It has a pressure switch and an external pressure regulator, both infinitely adjustable throughout the operating pressure range of 1,000 to 5,000 psi. An internal safety relief valve prevents damage from exceeding the maximum rated pressure. It's a gear/axial piston pump designed for use in single or multiple station applications. Its high torque universal motor is low voltage tolerant. Includes a 1⁄4" NPTF outlet manifold and will accept any Hytec pump-mounted valve. Shipped with two gallons of oil. Features • CSA approved model available • Drip proof universal motor • Filtered filler/breather cap • Liquid filled gauge • Carrying handle • 2.5-gallon metal reservoir • 525 cu. in. usable oil • Oil flow at max. pressure: 100 cu.in./min.
