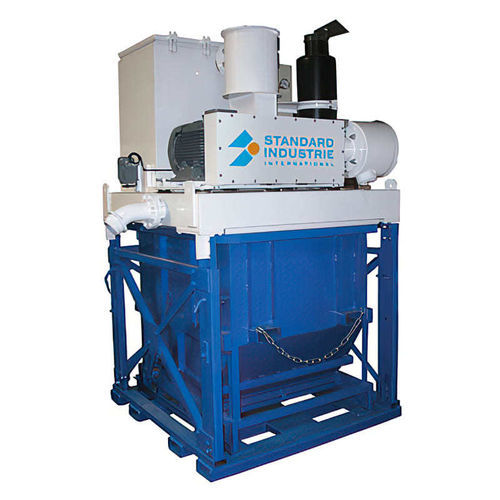

Industrial vacuum cleaner GAD

dryelectricmobile

Product overview
The industrial vacuum unit GAD is a mobile electric vacuum and pumping system designed for routine and heavy industrial cleaning and product transfer tasks. It integrates product collection and multiple emptying modes for on-site handling.

Main functions

• Industrial vacuum cleaning
• Pumping and collection to silo or container
• Suitable for granular and dusty materials (particle size up to 40 mm)

Operational characteristics

• Motor type: Electric
• Collection point: Silo or container
• Maximum operators: Up to 4
• Performance (product density 1): Up to 19 tons/hour
• Air output: Up to 2000 m³/hour
• Vacuum pressure: Up to 5000 mmWC
• Collection capacity: Up to 1.5 m³
• Acceptable particle size: Up to 40 mm
• ATEX option available (explosion vents)

Advantages

• Movable by forklift for easy relocation
• Quick to deploy and start on site
• Compact design with integrated collection capacity
• Flexible emptying options: container, big-bag, barrels, skips, continuous handling
• Designed to operate in heavy industrial environments with focused safety and productivity features

Related services

• On-site test / demonstration
• 1-year warranty
• Key‑in‑hand delivery and commissioning if required
• 2 after-sales service visits included in the warranty
• Rental & leasing
• Warranty extension
• Inspection and maintenance contracts
• Network study, statement and implementation
• On-site and external training (STANDARD INDUSTRIE training institute: IFSI – No. 31 59 05660 59)

Options / Accessories

• OPTIONS:
  • Anti-explosion system: vents
  • Sound enclosure
  • Hydrophobic & oleophobic filter bags
  • Manual, pneumatic or continuous discharge
• ACCESSORIES:
  • Flexible hoses: DN 100 to DN 50, rubber / polyurethane / PVC
  • Suction ports, lances, sensors and connectors

Multimedia
Product page includes images and an embedded product video.

Applications / Use cases

• Clinker vacuuming in cement plants
• Suction networks in glassworks
• Dust extraction in steel plants
• Grain and cereal dust handling
• Incinerator ash and residue cleaning

Technical specifications

• Model: GAD
• Application: Cleaning & pumping
• Motor type: Electric
• Collection: Silo or container
• Maximum operators: Up to 4
• Performance (density 1): Up to 19 tons/hour
• Air output: Up to 2000 m³/hour
• Maximum vacuum pressure: Up to 5000 mmWC
• Collection capacity: Up to 1.5 m³
• Acceptable particle size: Up to 40 mm
