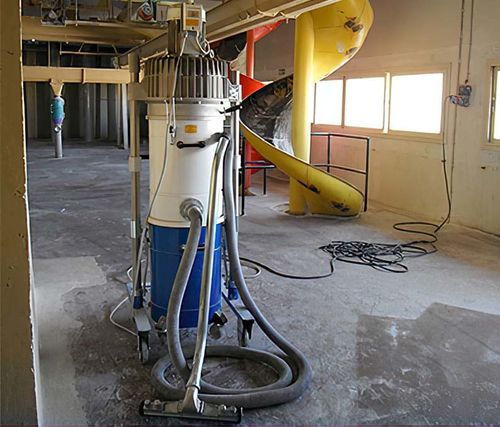

Industrial vacuum cleaner PAD

drymobilecompact

Overview
The industrial vacuum cleaner on wheels PAD delivers industrial suction capacity combined with mobility for production lines and confined areas.

Key data

• Application: Cleaning
• Motor: Electrical
• Collection: Container
• Operators: Up to 2
• Performance: Up to 6 tons/hour
• Air output: Up to 1350 m³/hour
• Vacuum pressure: Up to 3400 mm WC
• Collection capacity: Up to 450 L
• Particle size handled: Up to 30 mm

Advantages

• SIMPLE: Machine and tank on wheels for easy relocation
• QUICK: Rapid deployment on site
• COMPACT: Integrated collection capacity reduces footprint
• FLEXIBLE: Access to difficult areas and quick on-site intervention
• SAFE: Proven technology suitable for heavy industrial environments
• EASY TO MAINTAIN: Tool-free access to filters
• LARGE FILTERING SURFACE: Up to 4.5 m²

Related services

• Site visits and recommendations
• On-site test / demonstration
• 5-year warranty
• Turnkey delivery and commissioning if required
• After-sales visits included in the warranty
• Rental & leasing
• Warranty extension
• Inspection and maintenance contracts
• Network study, layout and implementation
• On-site and external training

Options

• ATEX version for zones 21 and 22
• Hydrophobic and oleo-phobic filter bags
• Absolute filtration (HEPA/absolute filters)
• Self-cleaning filter option
• AISI 304 stainless steel construction

Accessories

• Flexible hoses: DN 100 to DN 50, rubber / polyurethane / PVC
• Sensors and fittings: DN 100 to DN 50, steel / stainless steel / aluminium / PVC
• Suction nozzles, lances and connectors

Use cases

• Suction of wood dust (sawdust and chips)
• Cleaning of cereal dust in silos and handling towers (risk of accumulation and explosion)

Technical specifications

• Model: PAD
• Motor type: Electrical
• Collection type: Container
• Operators: Up to 2
• Performance: Up to 6 tons/hour (indicative)
• Air output: Up to 1350 m³/hour
• Vacuum pressure: Up to 3400 mm WC
• Collection capacity: Up to 450 L
• Particle size handled: Up to 30 mm
• Filtering surface: Up to 4.5 m²
• Optional ATEX (zones 21 & 22) and AISI 304 construction
