Particle separator

gravityfor the recycling industry

Overview

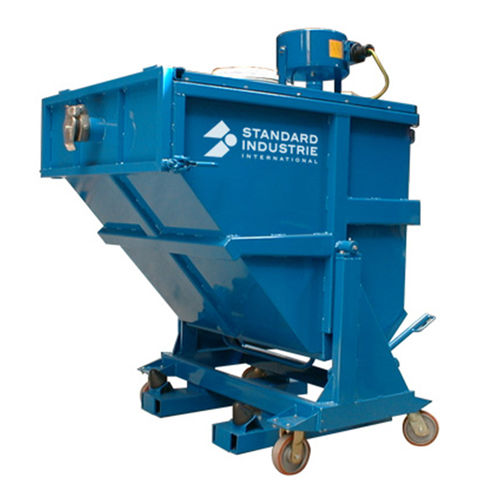

The pre-separator (industrial dust collector) collects and filters industrial waste while limiting dust emissions and enabling safe emptying.

Applications and collection

• Increase system capacity
• Varied emptying: big-bag, skip, barrel; vacuuming of hot products
• Collection modes: container or silo

Main features

• Operators: up to 6
• Airflow: up to 8000 m³/h
• Vacuum pressure: up to 8000 mmWC
• Collection capacity: up to 7 m³
• Accepts particle size up to 60 mm

Advantages

• Movable by forklift for on-site repositioning
• Rapid to deploy and start
• Compatible with multiple collection systems (container, big-bag, skips, barrels, continuous handling)
• Collection and emptying without dust emission

Related services

• Site visits and recommendations
• 1-year warranty and optional extension
• Installation, supervision and commissioning on request
• 1 after-sales visit included in warranty
• Rental & leasing
• Inspection and maintenance contracts
• Network study, implementation and measurement
• On-site and external training

Options / Accessories

• Explosion vent / flame arrester
• Earthing reels
• Level detectors
• Cyclonic head
• Filter bags
• Supporting frame for big-bag discharge
• Manual, pneumatic or continuous outlet valve

Case studies

• Chemical industry in Tunisia
• Cleaning services for a steelworks in France

Technical specifications

• Airflow: up to 8000 m³/h
• Vacuum pressure: up to 8000 mmWC
• Collection capacity: up to 7 m³
• Max particle size: up to 60 mm
• Operable by forklift
