Industrial vacuum cleaner SAM

drywetliquids

Overview

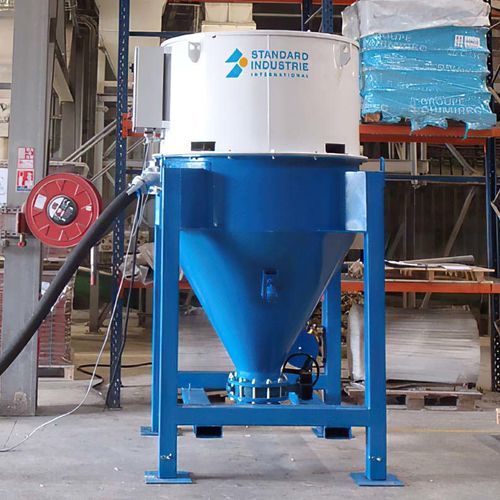

The centralized modular vacuum cleaner SAM is engineered for industrial cleaning, heavy pumping and material recovery. Mobile and easy to position by forklift, it supports up to 4 operators and handles coarse particles up to 40 mm.

Applications and main features

• Application: Cleaning & pumping
• Motor: Electrical
• Collection: Container or silo (multiple emptying modes)
• Operators supported: Up to 4
• Performance (product density 1): Up to 13 tons/hour
• Air output: Up to 2500 m³/h
• Vacuum pressure: Up to 3800 mm WC
• Collection capacity: Up to 1.5 m³
• Maximum particle size handled: Up to 40 mm

Advantages

• MOBILITY: Moveable by forklift for site repositioning
• FAST DEPLOYMENT: Quick start-up and intervention
• COMPACT FOOTPRINT: Integrated collection reduces overall volume
• FLEXIBLE DISCHARGE: Multiple emptying options — container, big bag, barrels, skips, continuous handling
• SUITABLE FOR HEAVY INDUSTRY: Simple, robust technology for high productivity in demanding environments
• EASY MAINTENANCE: Accessible filters and service points

Related services

• Site visits & recommendations
• On-site test / demonstration
• 1-year warranty
• Key-in-hand delivery and commissioning available
• 2 after-sales visits included in the warranty
• Rental & leasing
• Warranty extension
• Inspection and maintenance contracts
• Network study, layout and implementation
• On-site & external training (STANDARD INDUSTRIE training institute: IFSI)

Options / Accessories

• Anti-explosion vents
• ATEX zone 21 version
• Hydrophobic & oleo-phobic filter bags
• Discharge modes: manual, pneumatic or continuous

Accessories

• Flexible hoses: DN 120–50, rubber / polyurethane / PVC
• Sensors: DN 100–50, steel / stainless steel / aluminium / PVC
• Suction ports, lances and connection fittings

Use cases / Sectors

• Chemical industry
• Food processing (pasta, dough handling)
• Metal recycling
• Glassworks

Technical specifications

• Model: SAM
• Type: Centralized modular vacuum cleaning station (mobile)
• Application: Industrial cleaning and heavy pumping
• Motor: Electrical
• Operators supported: Up to 4
• Performance (product density 1): Up to 13 t/h
• Air output: Up to 2500 m³/h
• Vacuum pressure: Up to 3800 mm WC
• Collection capacity: Up to 1.5 m³
• Maximum particle size: Up to 40 mm
• Emptying options: Container, big bag, barrels, skips, continuous handling
• Optional: ATEX zone 21 version, anti-explosion vents, hydrophobic & oleo-phobic filter bags
• Available accessories: flexible hoses (DN 120–50), sensors (DN 100–50), suction ports, lances
