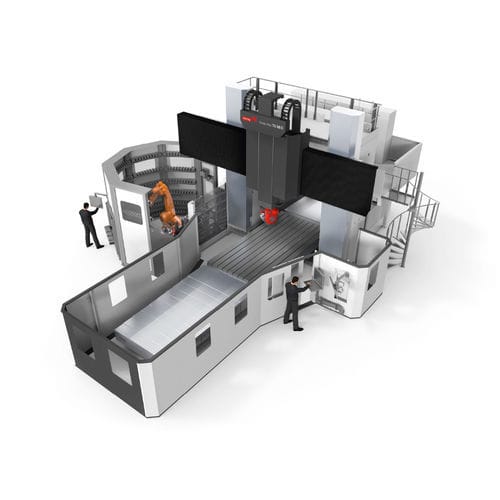

6-axis CNC machining center Droop+Rein TFS NEO

verticalrotating tableHSK A-63

Flexibility, efficiency and precision play a very important role for machine manufacturers and tool builders, especially when dealing with large components. These three requirements led to the development of the gantry machining centre TFS NEO with a fixed and movable crossbeam, whereby the customer chooses the table designs, controls and milling units suitable for them on a modular basis. The TFS NEO features a new milling unit and a modified C-axis (±400°) which, thanks to its enormous flexibility, can be used for efficient production of highly precise machine parts. The versatile table moving machines designed and built by Droop+Rein have one thing in common: Unmatched rigidity in its power class combined with highest flexibility in size and configuration. Highlights Optimised machine structure Large dimensioned compact linear guideways Preloaded double pinion to rack drive system Excellent dynamic behaviour Ram with integrated C-axis C- and B-axis continuously controlled or clamped in position Continuous 5-axis capability using fork-type heads Automatic cartridge change for wide range of motor milling spindles Large selection of automatically exchangeable milling heads Various table designs incl. turning table options Comprehensive peripheral devices Advanced Starrag diagnostics system High level of energy efficiency Industrie 4.0 proven by Starrag IPS Features The large number of automatically changeable milling heads increases the machine's flexibility within its scope of application. The TFS also allows automatic tool or spindle changing and tool or workpiece measurement.
